[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
3Effective 27-Jan-2006, this assembly was replaced by 540-6604 in option X6805A. 4Effective 27-Jan-2006, this assembly was replaced by 540-6604 in option X6805A. 5Effective 27-Jan-2006, this assembly ships with option X6805A.
7 Supported in 750MHz configurations. 8 Supported in 750MHz, 900MHz, 1015MHz, and 1200MHz configurations.
Replaced 540-4434 in 10/01. See FIN I0894-1 for further details.
9 X6767A changed to SG-XPCI1FC-QF2 in July 2003 10 X6768A changed to SG-XPCI2FC-QF2 in July 2003 11 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.
16 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1. 17 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1. 18 The necessary drivers (SUNWqus, SUNWqusu, SUNWqusx, & SUNWqusux) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see How To article
1018123.1 for details.
19 501-6230-07 is not compatible with Sun Fire 280R.
Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
NS = Not Shown

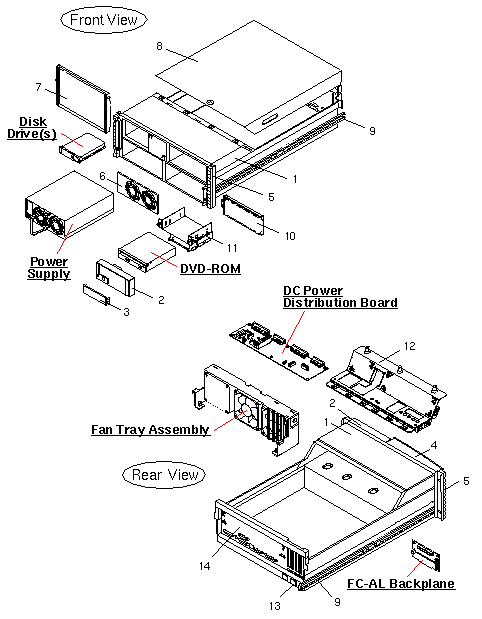

Code
Manufacturing Part#
Description
1
540-4509
Chassis Assembly
1
540-4823
Chassis Assembly (replaced 540-4231)
NS
340-5827
Base Enclosure
NS
340-5830
Disk Drive Bay
NS
340-5996
Front Enclosure
NS
340-6947
Front Top Cover (replaced 340-5831)
NS
340-6948
Power Bay Cover (replaced 340-5973)
7
540-4186 [F]
Left Door
8
540-4188
Rear Enclosure Top Cover
9
340-6131
Inner Slide Rail
10
540-4230 [F]
Right Door
11
540-4253
Media Drive Mounting Assembly
12
340-5834
Power Distribution Board Cover
13
540-4232 [F]
AC Outlet to Power Supply
NS
530-2819 [F]
AC Power Cable
14
540-4365
Rear Panel
NS
340-5881
Sun Blade 1000 System Board Mounting Panel
NS
370-4031 [F]
10A AC Receptacle and Line Filter
NS
530-2861
AC Ground Cable
1
540-4510
Enclosure Assembly with System Board
NS
540-4136
System Board Shroud Assembly
NS
330-2705
System Board Shroud
NS
540-4512
System Board Shroud Cover Assembly
NS
330-3089
System Board Shroud Cover
1
540-4511
Enclosure Assembly
6
340-6001
Power Supply Filler Panel
NS
340-6118
Security Switch Lock
NS
530-2822 [F]
DC Power Cable
NS
530-2824 [F]
Keyswitch/LED/Power Cable
NS
530-2826 [F]
RMA 8-Bit SCSI Cable
NS
530-2830 [F]
Control Cable
NS
530-2864 20 [F]
FC-AL and RMA Power Cable
NS
530-2941 [F]
DC Power Signal Cable
NS
530-2942 [F]
8-Bit SCSI Cable
NS
530-2943 [F]
I2C Cable
NS
530-3019 [F]
FC-AL Cable
1
599-2386
Enclosure Assembly
2
540-4570
RMA Bezel
3
330-2400 [F]
3 1/2" Device External Filler Panel
4
330-2911 [F]
Curved Bezel
5
330-2910
4U Trim Strip
NS
330-2983
Processor Module Slot Filler Panel
NS
250-1317 [F]
Key
NS
340-6395
Torque Tool
NS
540-4811 [F]
Keyswitch/LED/Power Cable FRU Assembly
NS
530-2824 [F]
Keyswitch/LED/Power Cable
NS
560-2625 21 [F]
Rail Kit Assembly
NS
340-5883
Outer Slide Rail
NS
340-6124
Short Rack Mounting Bracket
NS
340-6125
Long Rack Mounting Bracket
NS
370-5264
Mounting Brackets/Rails/Hardware Assembly
NS
560-2561
Rail Hardware Kit
20 530-2864-04 required 21 Revisions 560-2625-02 and later (after March 2001) contain only 370-5264, which includes all necessary components. Individual parts 340-5883, 340-6124, 340-6125, and 560-2561 were only listed in revision 560-2625-01 (before March 2001).
