2Gigabit/Sec PCI Single FC Host Adapter
Options 6767 / SG-XPCI1FC-QF2
| 375-3102 |

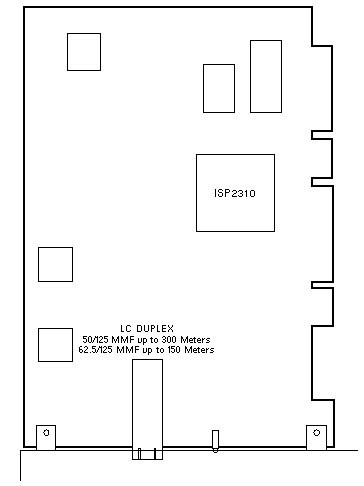

QLogic QLA2310F-SUN
3.3/5V 32/64Bit 33/66MHz |
Additional Information & Views
Fibre Cables
| OPTION |
FRU PART # |
DESCRIPTION |
| X9720A |
130-4723 |
SC-SC Fibre Channel Cable Coupler |
| X9721A |
537-1036 |
0.4 Meter LC-SC Fibre Channel Cable |
| X9722A |
537-1035 |
2 Meter LC-SC Fibre Channel Cable |
| X9723A |
537-1033 |
5 Meter LC-SC Fibre Channel Cable |
| X9724A |
537-1034 |
15 Meter LC-SC Fibre Channel Cable |
| X9732A |
537-1041 |
CBL, 2M, FC, LC-LC, MM,1.6 PLENUM |
| X9733A |
537-1042 |
CBL, 5M, FC, LC-LC, MM,1.6 PLENUM |
| X9734A |
537-1043 |
CBL, 15M, FC, LC-LC, MM,1.6 PLENUM |
Notes
- The minimum OS is Solaris 8 4/01 for fully functional
support of all associated software.
- Booting from a disk attached via this adapter in Solaris x64/x86
Operating Environment is not supported. No BIOS is installed
on the adapter.
- Product Note lists the required packages and patches, including those needed for
installation on Solaris 2.6 and 7.
References
 Sun StorageTek 2 Gb Fibre Channel PCI-X Enterprise HBA, QLogic, Single Port Documentation.
|
