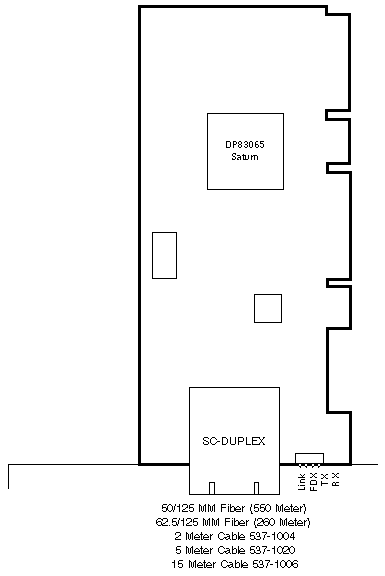

GigaSwift Ethernet MMF

Codename: GFS = GigaSwift Fibre Saturn

Option 4151
Option 4151A-2
Option 4153A-2

501-6762	501-7430	501-7511
3.3/5V   32/64Bit   33/66MHz Standard Profile Bracket Option X4151A	3.3/5V   32/64Bit   33/66MHz Standard Profile Bracket Option X4151A-2	3.3/5V 32/64Bit 33/66MHz Low Profile Bracket Option 4153A-2

Additional Information & Views

Notes

1. The minimum operating system is Solaris 7.
2. The ce device driver requires Solaris 7 Patch 112327-18, Solaris 8 Patch 111883-24, or Solaris 9 Patch 112817-17, or Solaris 9 x86 Patch 117714-01.
3. The minimum operating system for the VLAN Utility is Solaris 8.
4. The VLAN Utility requires Solaris 8 Patch 112119-04 or Solaris 9 Patch 114600-02.
5. Do Not install GigaSwift Ethernet and ESI/P on the same Ex000 PCI I/O Board.
6. Refer to Alert article 1000479.1 for information about forced mode with the CE driver.

PCI Bracket Notes

1. Standard Profile Bracket 370-4192 is installed on 501-6762 and 501-7430.
2. Low Profile Bracket 370-7810 was added to F501-6762-04 in November 2005.
3. Low Profile Bracket 370-7810 was added to 4151A and X4151A in November 2005.
4. FRUs include Standard Bracket 370-4192 and Low Profile Bracket 370-7810.

References

1. Sun GigaSwift Ethernet UTP/MMF Adapter Documentation.
