Dual Differential Ultra/Wide SCSI (PCI)

Other supported platforms:
Telco Systems	Netra t 1120, t 1125, ft 1800

Options 6541 / 6935

375-0006	540-3980
Symbios SYM22802 w/o FCode 3.3/5V 32Bit 33MHz	Netra ft 1800 FRU w 375-0006

Notes

1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
2. Ultra 5/10 OBP 3.11 Version 9 fixes BugID 14955851 [SUNBT4114784].
3. Ultra 30 OBP 3.11 Version 2 fixes BugID 14955851 [SUNBT4114784].
4. Ultra 60 OBP 3.11 Version 26 fixes BugID 14955851 [SUNBT4114784].

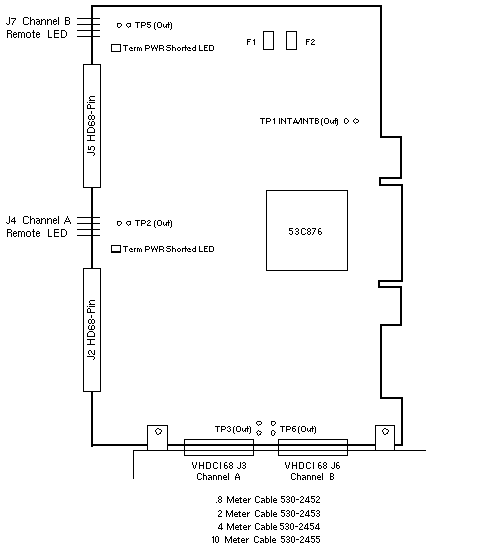

5. VHDCI is the Very High Density Cable Interconnect Standard.
6. A version of this card with FCode, F375-0014, was never used.
7. X6541 is not recognized by the SB1500 or SB2500 OBP. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])
8. X6541 is not a bootable device in the SB1500 or SB2500. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])

References

1. Sun StorEdge Ultra/Wide SCSI PCI Differential HBA, Dual Port Documentation.
