Sun Quad FastEthernet (QFE/P)

Codename: Gumby

Options 1034 / 6943

501-4366	501-5406-01	501-5406-06/07	540-4094

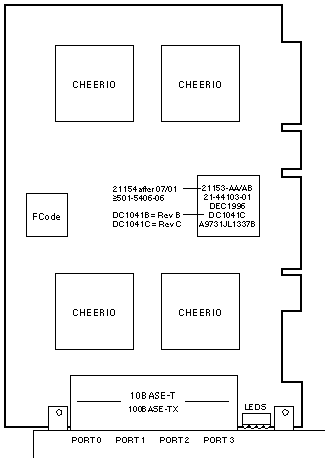

3.3/5V 32/64Bit 33MHz FAB 270-4366-04 07/97 - 09/99 DC21153-AA/AB/AC (see Note below)	3.3/5V 32/64Bit 33MHz FAB 270-5406-02 09/99 - 07/01 DC21153-AC	3.3/5V 32/64Bit 33MHz FAB 270-5406-06/07 07/01   /   04/02 DC21154BC	Netra ft 1800 FRU

Additional Information & Views

Notes

1. The minimum OS is Solaris 2.5.1 HW: 4/97 and Quad FastEthernet 2.0.
2. Solaris 2.6 requires QuadFastEthernet 2.1.
3. The Ultra 30, Netra T1, and Sun Blade 100 are not compatible with DC21153 Rev A or B.
   (See BugIDs 4094903, 4432431, and 4615897, and FCO A0132-1.)
   501-4366 was not qualified on system platforms released after July 2001.
4. One CPU per port is recommended for maximum throughput.
5. Two CPUs per QFE/P are recommended for systems with >=200MHz processors.
6. Auto-negotiation is used to select operating mode and speed.

References

1. Sun Quad FastEthernet PCI Adapter Documentation.

Notes

1. Option LW8-QFE was announced in September 2004.
2. The minimum Quad FastEthernet operating system is Solaris 2.5.1 HW: 4/97.
3. The minimum Sun Fire V1280 and Netra 1280 operating system is Solaris 8 2/02.
4. The minimum Sun Fire E2900 operating system is Solaris 8 2/04 or Solaris 9 4/04.
5. One CPU per port is recommended for maximum throughput.
6. Auto-negotiation is used to select operating mode and speed.

References

1. Sun Quad FastEthernet PCI Adapter Documentation.
