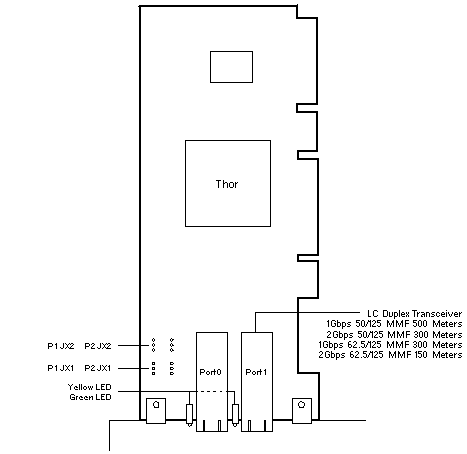

2Gigabit/Sec PCI-X Dual FC Host Adapter
| Codename: Rainbow (aka Crystal-2R) |
Option SG-XPCI2FC-EM2
| 375-3305 |
Emulex LP10000DC-S PCI/PCI-X
3.3/5V 32/64Bit 33/66/100/133MHz |
Additional Information & Views
.4 Meter LC-SC Cable 537-1036, Option 9721
2 Meter LC-SC Cable 537-1035, Option 9722
5 Meter LC-SC Cable 537-1033, Option 9723
15 Meter LC-SC Cable 537-1034, Option 9724
.8 Meter LC-LC Cable 537-1057, Option 9730
2 Meter LC-LC Cable 537-1041, Option 9732
5 Meter LC-LC Cable 537-1042, Option 9733
15 Meter LC-LC Cable 537-1043, Option 9734 |
Notes
- The FRU and the X-option include standard bracket 240-4815 and
low-profle bracket 240-4811.
- Do not install 375-3305 in slot 2 or slot 3 of Sun Fire V40z.
- Booting from a disk attached via this adapter in Solaris x64/x86
Operating Environment is not supported.
- StorEdge 3510/3511 Direct Attach Storage configurations are not supported.
- PCI Identifiers are Vendor ID 0x10df and Device ID 0xfc00.
- Vital Product Data VPD=PN is not defined in specification 950-4802.
References
 Sun StorageTek 2 Gb Fibre Channel PCI-X Enterprise HBA, Emulex Documentation.
|
