12-24GB 4 mm DDS-3 Tape Drive

Other supported platforms:
Telco:	Netra ct 400, ct 800, ft 1800 Netra t 1120, t 1125

Options 6280 / 6281 / 6282 / 6283 / 6284 / 6286 / 6912 / 6930
TAP4MM-011A / TAP4MM-021A

370-2376	370-2377	540-4016	540-4409-03
HP C1537-00626 Medium Grey Bezel	HP C1537-00625 Light Grey Bezel	Netra ft 1800 FRU RMM Tray with CD-ROM + DDS-3	ct 400/800 FRU RMM Tray with 370-2376

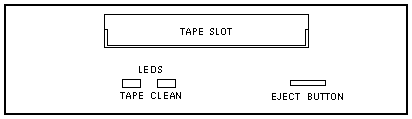

Front View

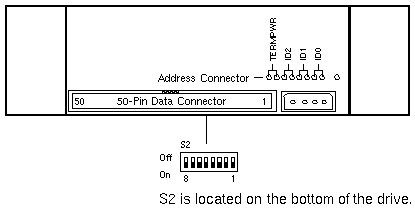

Rear View

Notes

1. The minimum operating system is Solaris1.1.2 or Solaris 2.4.
2. Switch S2 is disabled by the Sun firmware.
3. An Adapter Cable is attached to the Address Connector.
4. The Adapter Cable is provided by the drive manufacturer.
5. The Blank Data Tape part number is 370-2378-01.
6. The Cleaning Kit part number is 370-1613-01.
7. Firmware Update Tape L706 (December 1997) is part number 370-3376-01.
8. Firmware Update L007 (January 2001) is available in Patch 112092-01.

References

1. DDS-3 Tape Drive Installation and User's Guide.
