High Speed Serial Interface (HSI/P)
Options 1040 / 1155 / 6931
| 370-2728 |
540-3982 |
Performance Technologies
PT-PCI334-10592
5V 32Bit 33MHz |
Netra ft 1800 FRU
with 370-2728 |

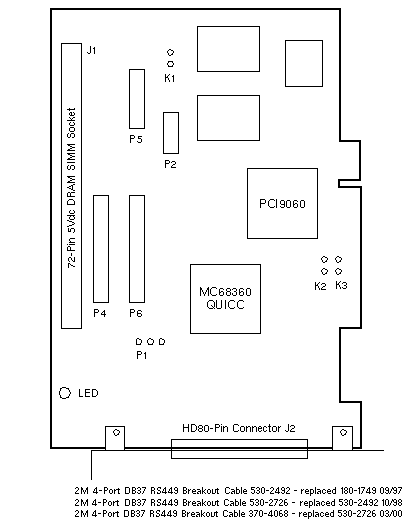

Additional Information & Views
Jumper Settings
| JUMPERS |
PINS |
SETTING |
DESCRIPTION |
| K1 |
1-2 |
Out |
Burn-In disabled |
K2
K3 |
1-2
1-2 |
In
Out |
Max Power = 25W
Max DRAM 32MB |
K2
K3 |
1-2
1-2 |
Out
In |
Max Power = 15W (default)
Max DRAM 8MB (default) |
K2
K3 |
1-2
1-2 |
In
In |
Max Power = 7.5W
Max DRAM 2MB |
K2
K3 |
1-2
1-2 |
Out
Out |
Max Power = 0W
Max DRAM 0MB |
Connectors
| LOCATION |
PINS |
DESCRIPTION |
| J1 |
72 |
SIMM socket |
| J2 |
80 |
RS-449 (422) port |
| P1 |
3 |
Debug port |
| P2 |
10 |
Background Debug Mode (BDM) port |
| P3 |
1 |
Clock test |
| P4 |
34 |
Data bus test (not stuffed) |
| P5 |
18 |
Control test (not stuffed) |
| P6 |
34 |
Address bus test (not stuffed) |
Notes
- The HSI/P supports 1MB through 32MB, 72-Pin, 5 Volt SIMMs.
- A 4MB SIMM is installed as a standard configuration.
- The 4MB SIMM does not have a Sun part number.
- The BDM port is defined in the QUICC Users Manual, Section 9.9.
- The HSI/P Cable provides four DB37 connectors.
- The HSI/P is not supported on the PCI+ I/O assembly (540-6247)
Operating System Notes
- The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
- The HSI/P 1.0 software is on CD-ROM 704-5748-10.
- The HSI/P 2.0 software is on CD-ROM 704-6439-10.
- Option 1155 includes HSI/P 2.0 for Solaris 7.
- The Solaris 8 Supplement includes HSI 3.0 software.
- Solaris messaging identifies the card as "pci1214,334".
References
 Sun HSI/P User's Guide, 805-1075.
|
