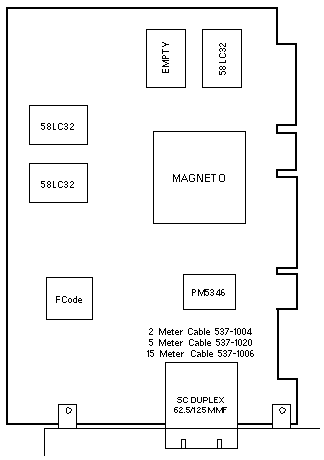

SunATM-155/MFiber 3.0/4.0/5.0

Codename: Magneto

Options 1066 / 1157 / 6932

501-3028	540-3984
3.3/5V 32/64Bit 33/66MHz	Netra ft 1800 FRU w 501-3028

Additional Information & Views

Notes

1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
2. The SunATM 3.0 software is on CD-ROM 704-6006-10.
3. The SunATM 3.0 software Update 1 is on CD-ROM 704-6006-11.
4. Option 1157 includes ATM 4.0 software for Solaris 7.
5. The Solaris 8 Supplement includes ATM 5.0 software.
6. On a Sun Blade 1000, do not install in PCI Slot 1 (66MHz). Install only in Slot 2, 3, or 4 (33MHz).

References

1. SunATM 3.0 Installation and User's Guide, 805-0331
2. SunATM 4.0 Installation and User's Guide, 805-6552
