1Gigabit/Sec PCI Dual FC Host Adapter+

Codename: Crystal+

Option 6727

375-3030
QLogic QLA2212F/66-SUN 3.3/5V   32/64Bit   33/66MHz

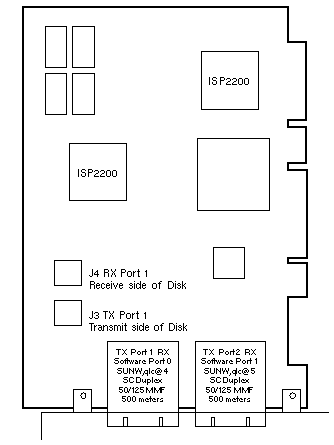

Additional Information & Views

Fibre Cables

OPTION	FRU PART #	DESCRIPTION
X973A	537-1004	2 Meter SC-SC Fibre Channel Cable
X978A	537-1006	15 Meter SC-SC Fibre Channel Cable, 50/125 Multimode
X9715A	537-1020	5 Meter SC-SC Fibre Channel Cable
X9720A	130-4723	SC-SC Fibre Channel Cable Coupler
X9721A	537-1036	0.4 Meter LC-SC Fibre Channel Cable
X9722A	537-1035	2 Meter LC-SC Fibre Channel Cable
X9723A	537-1033	5 Meter LC-SC Fibre Channel Cable
X9724A	537-1034	15 Meter LC-SC Fibre Channel Cable

Notes

1. The minimum OS is Solaris 7 11/99 or Solaris 8 6/00.
2. SAN 4.3 fabric boot requires FCode 1.14.02. (Patch 111853-02)

Sun Fire V480 / V880 Notes

1. For optimal performance in the Sun Fire V880, install this board in Slots 7 and 8.
2. Do Not use external Port 1 if internal Port 1 is connected to V480 or V880 Loop-B.
3. Do Not connect internal Port 1 to V480 or V880 Loop-A.
4. SC Loopback Plug 530-3326 in Port 1 will resolve V480 and V880 BugID 15201848 [SUNBT5014917].

References

1. Sun StorEdge PCI Dual Fibre Channel Network Adapter Product Notes, 816-0261.
2. Sun StorEdge PCI Dual Fibre Channel Host Adapter Installation Guide.
