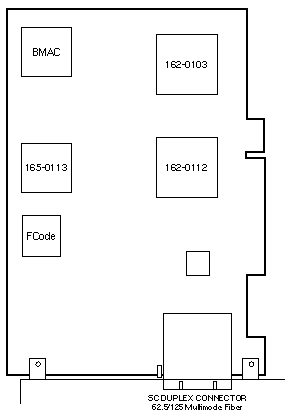

FDDI/P SAS 1.0/2.0/3.0

Options 1035 / 1152

370-2811
Network Peripherals 105-0174 5V 32Bit 33MHz

Notes

1. The minimum FDDI/P 1.0 OS is Solaris 2.5.1 Hardware: 4/97.
2. Option 1152 includes FDDI 2.0 software for Solaris 7.
3. The Solaris 8 Supplement includes FDDI 3.0 software.
4. The final operating system is Solaris 9.
5. The 3 Meter cable has a duplex MIC connector (male) on one end and a duplex SC connector (male) on the other end.
6. Cable assembly 537-1009 includes type A, AM, B, BM, and S keys and duplex MIC to MIC (female to female) coupler 130-3122.

References

1. SunFDDI PCI Adapter 1.0 Documentation
2. SunFDDI/P Adapter 2.0 Documentation
