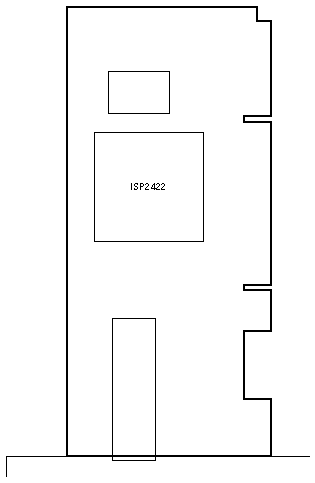

4Gigabit/Sec PCI-X Single FC Host Adapter

Codename: Pyramid (Pyramid-1)

Option SG-XPCI1FC-QF4

375-3354
Qlogic QLA2460-S PCI/PCI-X 3.3V (mode 1)   1.5V/3.3V (mode 2) 64Bit   33/66/100/133/266MHz

Notes

1. The minimum Solaris operating system is Solaris 8.
   Solaris 8 and 9 require SAN 4.4.8.
2. The Option and the FRU include Standard Bracket 240-4900 and Low Profile Bracket 240-4905.
3. SG-XPCI1FC-QF4 is not compatible with 5.0V slots.

References

1. Sun StorageTek Enterprise PCI-X 4Gb FC Host Bus Adapters Documentation.
