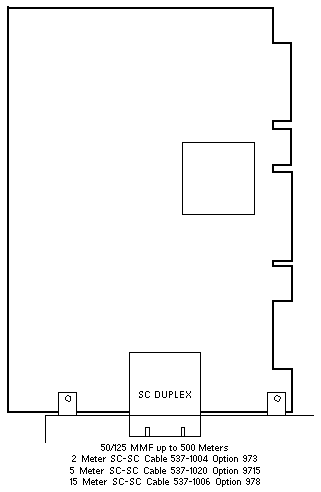

1Gigabit/Sec PCI Single FC Host Adapter
Option 5133
| 501-6640 |
QLogic QLA2200F-CK
3.3/5V 32/64Bit 33/66MHz |
References
Sun Fire V60x Server PCI Card Removal/Replacement, 817-2279.
-
Sun Fire V65x Server PCI Card Removal/Replacement, 817-2279.
- SANblade 2200 Series User's Guide, QLogic FC2254601-00.
- SANblade Manager User's Guide, QLogic FS0054601.

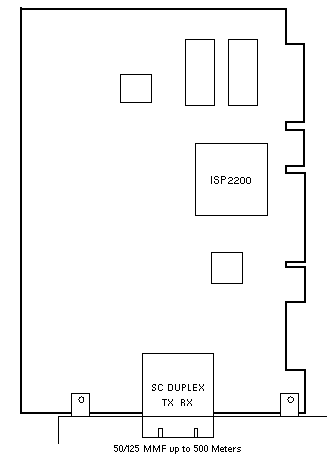

1Gigabit/Sec PCI Single FC Host Adapter
Option 6799
| 375-3019 |
QLogic QLA2200F/66-SUN
3.3/5V 32/64Bit 33/66MHz |
Additional Information & Views
Fibre Cables
| OPTION |
FRU PART # |
DESCRIPTION |
| X973A |
537-1004 |
2 Meter SC-SC Fibre Channel Cable |
| X978A |
537-1006 |
15 Meter SC-SC Fibre Channel Cable, 50/125 Multimode |
| X9715A |
537-1020 |
5 Meter SC-SC Fibre Channel Cable |
| X9720A |
130-4723 |
SC-SC Fibre Channel Cable Coupler |
| X9721A |
537-1036 |
0.4 Meter LC-SC Fibre Channel Cable |
| X9722A |
537-1035 |
2 Meter LC-SC Fibre Channel Cable |
| X9723A |
537-1033 |
5 Meter LC-SC Fibre Channel Cable |
| X9724A |
537-1034 |
15 Meter LC-SC Fibre Channel Cable |
Notes
- The minimum OS is Solaris 7 HW: 11/99 or Solaris 8 HW: 6/00.
- Solaris 7 support is planned for Q3FY01.
- SAN configurations require Solaris 8.
- SAN configurations require Solaris 8.
- SAN 4.3 fabric boot requires FCode 1.14.02 (Patch
111853-02).
References
- Sun StorEdge PCI Single Fibre Channel Network Adapter Documentation.
|
