StorEdge 10X DVD-ROM

Other supported platforms:
Telco	Netra ct 800, CT 810 Netra t 1120, t 1125
Disk Arrays	StorEdge D240

Options 5883 / 6168

390-0025
Toshiba SD-M1401 (<= -02) Toshiba SD-M1711 (>= -03) SCSI Interface 1 5/8" Height Medium Grey Bezel

540-4684	595-5473
Netra ct 800 FRU Netra CT 810 FRU	D240 FRU Assembly 599-2396 or Assembly 540-5699

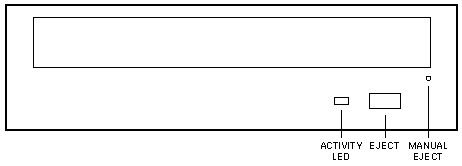

Front View

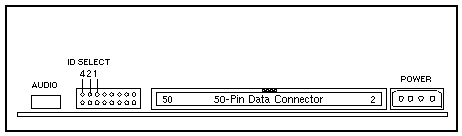

Rear View

Notes

1. The minimum CD-ROM mode operating system is Solaris 2.5.1.
2. The minimum DVD-ROM mode operating system is Solaris 8.
3. The M1401 model requires patch 111649 to run on Solaris.
4. The M1401 reached end of production in August 2003.
5. The M1401 was replaced with the M1711 in August 2003.
6. Performance specifications for the M1711 exceed those of the M1401.

Reference

Installation and User's Guide, 806-5518.
