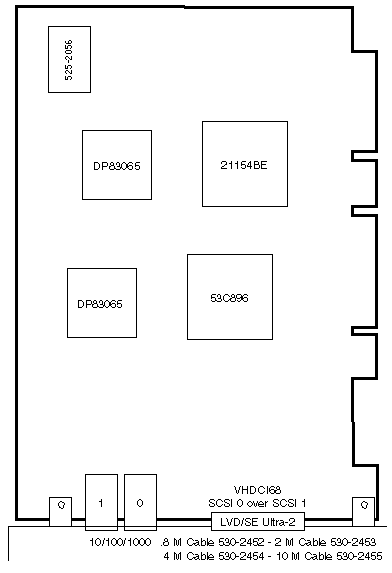

Dual GigabitEthernet / Dual SCSI Ultra-2 PCI Adapter

Codename: Cauldron-S (also Cauldron Saturn, Cauldron Plus)

Other supported platforms:
Telco Systems	Netra t 1120, t 1125
Disk Arrays	StorEdge D240

Option 4422A / 4422A-2

501-6635	501-7490
3.3/5V   32/64Bit   33/66MHz 4422A	3.3/5V   32/64Bit   33/66MHz 4422A-2

Additional Information & Views

Notes

1. The minimum operating system is Solaris 8 2/02.
2. Solaris 10 is supported.
3. Each SCSI interface supports Single-Ended (SE) or Low Voltage Differential (LVD) SCSI connections.
4. To configure 501-6635 into an hsPCI I/O assembly (option X4575A) on Sun Fire 12K or 15K, the following patches are required:
   On Solaris 8: >= 116962-01
   On Solaris 9: >= 117171-07
5. Use 1.5' Ethernet Cable 530-3335 without locking tab and RJ45 Female to Female Adapter 130-5586 to workaround BugID 5011918 against 501-6635-04.
   (Cable Kit 530-3336 includes 130-5586 and 530-3335.)
   530-3335 and 130-5586 briefly shipped with X4422A until 501-6635-05 was released.
6. 501-6635-05 fixes BugID 5011918 (WO_29531, July 2004) by positioning connector orientation tab down:

7. Install only one X4422A in Sun Fire V40z Slot 2 or 3. Install additional cards in Slot 1,4,5,6, or 7.
8. Refer to Alert article 1000479.1 for information about forced mode with the CE driver.

References

1. Sun Dual Gigabit Ethernet + Dual SCSI PCI Adapters Documentation.
