20-40GB 4 mm DDS-4 Tape Drive

Other supported platforms:
Disk Arrays	StorEdge D240

Options 5881 / 6295 / 6296 / 6297 / 7165 / TAP4MM-012A

390-0027	390-0028	390-0090
HP C5683-00625 Wide SCSI Enabled Medium Grey Bezel Option 6296 + Unipack	HP C5683-00625 Wide SCSI Disabled Medium Grey Bezel Option 6295	V120/V1280 FRU Netra 120/1280 FRU Medium Grey Bezel Option 6297
540-4409	540-4409	595-5472
ct 800 FRU RMM Tray with DDS-4 390-0027 540-4409-05/06	ct 800/CT 810 FRU RMM Tray with DDS-4 390-0028 540-4409-07	D240 FRU Assembly 599-2397 or Assembly 540-5700 DDS-4 390-0027

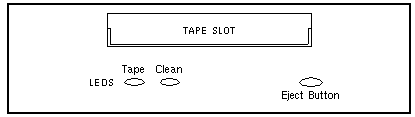

Front View

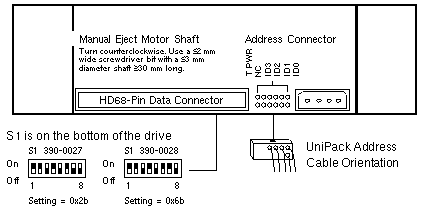

Rear View

Notes

1. The minimum operating system is Solaris 2.5.1 with Patch 103857.
2. Use the Address Cable or 2 mm shunts on the Address Connector.
3. Solaris only supports S1 switch settings 0x2b and 0x6b.
4. The Blank Data Tape part number is 370-4083-01.
5. The Cleaning Kit part number is 370-1613-01.
6. The DDS-4 drive can read and write DDS-2, DDS-3, and DDS-4 tapes.
7. DDS-1 (90m) tapes can be read but not written by the DDS-4 drive.

Adapter Notes

1. Option 6295 includes Narrow SCSI Adapter Cable 530-2924.
2. Options 6295 and 7165 include Narrow SCSI 50-68 Pin Adapter 370-3548.
3. Adapter 370-3548 is a Meritec 980211-1M1-3M0.
4. Adapter Kit 540-4484 includes Cable 530-2924 and Adapter 370-3548.
5. Option 6295 includes Adapter Kit 540-4484.
6. Netra 20 SCSI Cable 530-3065 includes a 50-68 Pin Adapter.
7. The Netra 20 50-68 Pin Adapter is a Datamate DM500-5068-25.

References

1. Sun StorageTek DDS-4 Tape Drive Documentation.
