Dual FastEthernet / Dual SCSI Ultra-2 PCI Adapter

Codename: Cauldron

Other supported platforms:
Telco Systems	Netra t 1120, t 1125

Option 2222

501-5727
3.3/5V 32/64Bit 33/66MHz

Additional Information & Views

Notes

1. Each SCSI interface supports Single-Ended (SE) or Low Voltage Differential (LVD) SCSI connections.
2. The minimum OS announced on 9/25/01 was Solaris 8 10/01.
3. The minimum OS announced on 3/12/02 was Solaris 8 2/02.
4. The F12K / F15K AXQ ASIC requires Solaris 8 Patch >=108528-13.
5. The F12K / F15K requires Patch >=109885-08 to boot Solaris 8 10/01.
6. The F48x0/6800 requires Patch >=109885-08 to boot Solaris 8 10/01.
7. 501-5727-05 was cancelled by WO_27194. No boards were built or shipped.

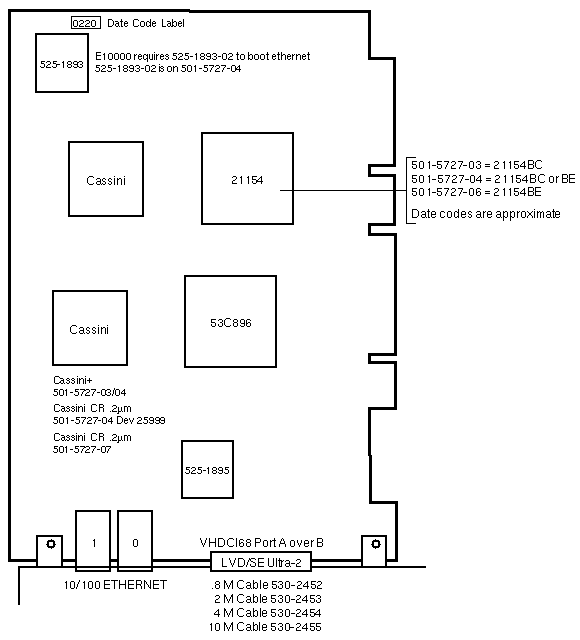

8. 501-5727-04 or lower with the BC bridge chip (see 21154 in board picture) may cause a panic during boot on SunFire 12K/15K systems.
   See FCO A0219-1 for details, including instructions on determining the bridge chip code.
9. Refer to Alert article 1000479.1 for information about forced mode with the CE driver.

References

1. Sun Dual FastEthernet and Dual SCSI/P Adapter Documentation.
