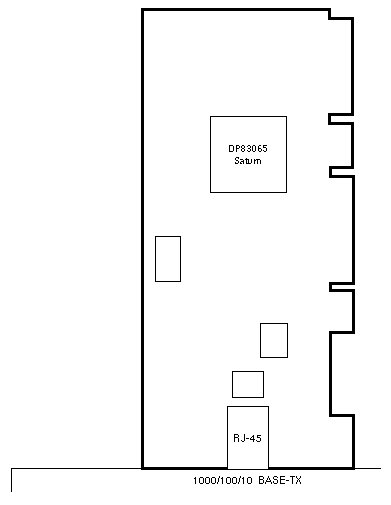

GigaSwift Ethernet UTP
| Codename: GCS = GigaSwift Copper Saturn |
Options 4150 / 4150A-2 / 4152A-2
| 501-6719 |
501-7415 |
501-7508 |
3.3/5V 32/64Bit 33/66MHz
Standard Profile Bracket
Option X4150A |
3.3/5V 32/64Bit 33/66MHz
Standard Profile Bracket
Option X4150A-2 |
3.3/5V 32/64Bit 33/66MHz
Low Profile Bracket
Option 4152A-2 |
Additional Information & Views
Notes
- The minimum operating system is Solaris 7.
- The ce device driver requires Solaris 7 Patch
 112327-18,
Solaris 8 Patch
111883-24,
or Solaris 9 Patch
112817-17,
or Solaris 9 x86 Patch
117714-01.
- The minimum operating system for the VLAN Utility is Solaris 8.
- The VLAN Utility requires Solaris 8 Patch
112119-04
or Solaris 9 Patch
114600-02.
- Do Not install GigaSwift Ethernet and ESI/P on the same Ex000 PCI I/O Board.
- Refer to Alert article
1000479.1
for information about forced mode with the CE driver.
PCI Bracket Notes
- Standard Profile Bracket 370-4193 is installed on 501-6719 and 501-7415.
- Low Profile Bracket 370-7809 is installed on 501-7508.
- Low Profile Bracket 370-7809 was added to F501-6719-05 in November 2005.
- Low Profile Bracket 370-7809 was added to 4150A and X4150A in November 2005.
- FRUs include Standard Bracket 370-4193 and Low Profile Bracket 370-7809.
References
- Sun GigaSwift Ethernet UTP/MMF Adapter Documentation.
|
