2Gigabit/Sec PCI Dual FC Host Adapter

Codename: Crystal-2A

Additional Supported Systems

Servers:	Enterprise 10000
Tape Libraries:	StorageTek SL24, SL48

Option 6768
Option SG-XPCI2FC-QF2
Option SG-XPCI2FC-QF2-Z

375-3108	375-3363
QLogic QLA2342-SUN PCI/PCI-X 3.3/5V   32/64Bit   33/66/100/133MHz	QLogic QLA2342-SUN PCI/PCI-X 3.3/5V   32/64Bit   33/66/100/133MHz

Additional Information & Views

Fibre Cables

OPTION	FRU PART #	DESCRIPTION
X9720A	130-4723	SC-SC Fibre Channel Cable Coupler
X9721A	537-1036	0.4 Meter LC-SC Fibre Channel Cable
X9722A	537-1035	2 Meter LC-SC Fibre Channel Cable
X9723A	537-1033	5 Meter LC-SC Fibre Channel Cable
X9724A	537-1034	15 Meter LC-SC Fibre Channel Cable
X9732A	537-1041	CBL, 2M, FC, LC-LC, MM,1.6 PLENUM
X9733A	537-1042	CBL, 5M, FC, LC-LC, MM,1.6 PLENUM
X9734A	537-1043	CBL, 15M, FC, LC-LC, MM,1.6 PLENUM

Notes

1. The minimum SPARC operating system is Solaris 8 4/01 for fully functional support of all associated software.
2. F375-3108-01 includes Standard Bracket 240-4838.
3. F375-3108-02 includes Standard Bracket 240-4838 and Low Profile Bracket 240-4839.
4. F375-3363-xx includes Standard Bracket 240-4838 and Low Profile Bracket 240-4839.
5. X-options include both brackets.
   Factory configured ATO options include one bracket.
6. Booting from a disk attached via this adapter in Solaris x64/x86 Operating Environment is not supported. No BIOS is installed on the adapter.
7. Product Notes 816-5002 lists the required packages and patches, including those needed for installation on Solaris 2.6 and 7.

References

1. Sun StorageTek 2 Gb Fibre Channel PCI-X Enterprise HBA, QLogic, Dual Port Documentation.

Notes

1. The QLA2342L includes a low-profile bracket.

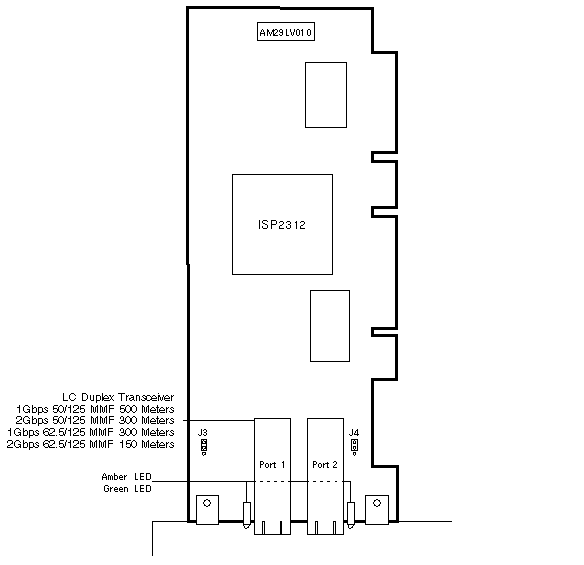

2. Jumpers J3 and J4 set the laser state. Do not change the default (2-3 In) setting.

References

1. QLA2342/2342L Data Sheet, Qlogic FC5058002.
2. QLA2342/2342L User's Guide, Qlogic FC5054602.
