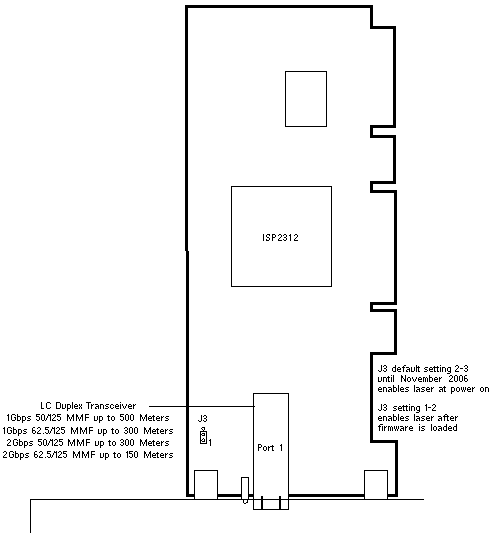

2Gigabit/Sec PCI-X Single FC Host Adapter
Options 9279A / 9279A-Z
| 370-6697 |
371-1629 |
Qlogic QLA2340-CK
PCI/PCI-X 3.3/5V 32/64Bit
33/66/100/133MHz
9279A |
Qlogic QLA2340-CK
PCI/PCI-X 3.3/5V 32/64Bit
33/66/100/133MHz
9279A-Z |
Reference
- SANblade 2300 Series User's Guide, Qlogic FC2354601.

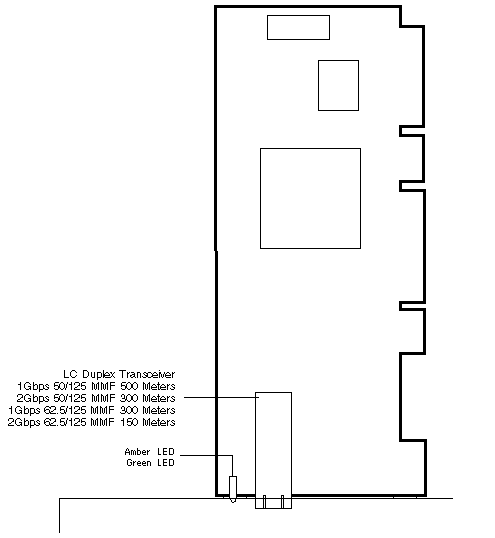

2Gigabit/Sec PCI-X Single FC Host Adapter
Additional Supported Systems
| Servers: |
Enterprise 10000 |
Option SG-XPCI1FC-QL2
| 375-3383 |
Qlogic QLA2340 PCI/PCI-X
3.3/5V 32/64Bit 33/66/100/133MHz |
Additional Information & Views
Notes
- The FRU and the X-option include standard bracket 240-5078 and
low-profle bracket 240-5079.
- PCI Identifiers are Vendor ID 0x1077 and Device ID 0x2312.
- Vital Product Data VPD=PN is not defined in specification 950-5017.
References
 Sun StorageTek 2 Gb Fibre Channel PCI-X Enterprise HBA, Emulex, Single Port Documentation.
|
