Dual Single-Ended Ultra/Wide SCSI (PCI)

Other supported platforms:
Disk Arrays	StorEdge D240

Option 6540

375-0005
Symbios SYM22801 w/o FCode 3.3/5V 32Bit 33MHz

Additional Information & Views

Notes

1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.

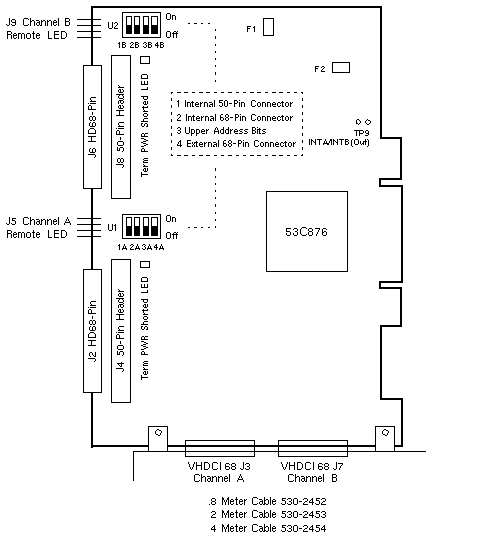

2. Dip switches enable/disable termination.
3. Ultra 5/10 OBP 3.11 Version 9 fixes BugID 14955851 [SUNBT4114784].
4. VHDCI is the Very High Density Cable Interconnect Standard.
5. A version of this card with FCode, F375-0013, was never used.
6. Option 6540 is not recognized by the SB1500 or SB2500 OBP. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])
7. Option 6540 is not a bootable device in the SB1500 or SB2500. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])

References

1. Sun StorEdge Ultra/Wide SCSI PCI Single-Ended HBA, Dual Port Documentation.
