Ultra 80 Workstation - Full Components List

Boot PROM
CPU Module
Communication
Disks
Ethernet
Fibre Channel
Graphics

IDPROM
Input Device
Memory
Miscellaneous
Power
Rack
Removable Media

SCSI
System Board
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Boot PROM
Socket	Manufacturing Part #	Patch
U3007	525-1780	109082

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X1195A [S]	501-6071 [C]	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black	n/a
n/a	501-5344 [C]	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black	n/a
n/a	501-5539 [C]	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black	n/a
n/a	501-5687 [C]	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black/Blaze	n/a
n/a	501-5999	450MHz UltraSPARC II Module 4MB Cache Blaze	n/a
n/a	501-6865 [C]	450MHz UltraSPARC II Module 4MB Cache Sapphire-Black	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1035A [S]	370-2811 [C]	FDDI/P SAS 1.0	n/a
X1036A [S]	370-2812 [C]	FDDI/P DAS 1.0	n/a
X1066A [S]	501-3028 [C]	SunATM-155/MFiber PCI 3.0	n/a
X1067A [S]	501-3027 [C]	SunATM-155/UTP PCI 3.0	n/a
X1068A [S]	501-3029 [C]	SunATM-622/MFiber PCI 3.0	n/a
X1133A [S]	375-0130 [C]	Crypto Accelerator I	n/a
X1152A [S]	370-2811 [C]	FDDI/P SAS 2.0	n/a
X1153A [S]	370-2812 [C]	FDDI/P DAS 2.0	n/a
X1155A [S]	370-2728 [C]	High Speed Serial Interface PCI (HSI/P) 2.0	n/a
X1157A [S]	501-3028 [C]	SunATM-155/MFiber PCI 4.0	n/a
X1158A [S]	501-3027 [C]	SunATM-155/UTP PCI 4.0	n/a
X1159A [S]	501-3029 [C]	SunATM-622/MFiber PCI 4.0	n/a
X2154A [S]	375-0073 [C]	Token Ring Interface (TRI/P) 5.0	n/a
X2156A [S]	375-0100 [C]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a
X6762A [S]	375-3089 [C]	Crypto Accelerator 1000	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X5237A [S]	540-4177 [C]	18.2GB - 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:	n/a
	390-0002	Seagate ST318203LC [ST318203LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB - 10000 RPM - SCSI-Disk)	n/a
	390-0038	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X5242A [S]	540-4521 [C]	36.4GB - 10000 RPM, Disk Assembly with 1 bracket, and 1 of the following disks:	n/a
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0156	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
n/a	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1033A [S]	501-5019 [C]	Sun FastEthernet PCI Adapter (FE/P) 2.0	n/a
X1034A [S]	501-5406 [C]	Quad FastEthernet PCI (QFE/P)	n/a
X1141A [S]	501-4373 [C]	Gigabit Ethernet PCI (GBE/P) 2.0	n/a
X1150A [S]	501-5902 [C]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X1151A [S]	501-5524 [C]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X2069A [S]	501-5426 [C]	Gigabit Ethernet FC-AL/P	n/a
X3150A [S]	501-5902 [C]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X3151A [S]	501-5524 [C]	Sun GigaSwift Ethernet MMF (Fiber)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-QF2 [S]	375-3102 [C]	2Gb PCI Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	375-3108 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	240-4839	Low Profile Bracket	n/a
X6727A [S]	375-3030 [C]	PCI Dual FC Host Adapter+	n/a
X6729A [S]	375-0040 [C]	Single Loop PCI FC-AL Host Adapter (FC100/P)	n/a
X6767A ¹ [S]	375-3102 [C]	2Gb PCI Single FC Host Adapter	n/a
X6768A ² [S]	375-3108 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
X6768A ² [S]	240-4839	Low Profile Bracket	n/a
X6799A [S]	375-3019 ³ [C]	PCI Single FC Host Adapter	n/a

¹ X6767A changed to SG-XPCI1FC-QF2 in July 2003
² X6768A changed to SG-XPCI2FC-QF2 in July 2003
³ 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X1089A [S]	370-4072 [C]	SunVideo Plus	n/a
X3256A [S]	540-5476 [C]	XVR-1000 Graphics Accelerator (FFB3)	n/a
X3664A [S]	501-5484 [C]	Elite3D-m3	n/a
X3665A [S]	540-3902 [C]	Elite3D-m6	n/a
X3668A [S]	370-3753 [C]	PGX32 8/24-Bit Color Frame Buffer	n/a
X3677A [S]	501-5574 [C]	Elite3D-m3 Series 2 Accelerator	n/a
X3678A [S]	370-3987 [C]	Expert3D 24-Bit Color Frame Buffer	n/a
X3679A [S]	540-4313 [C]	Elite3D-m6 Series 2 Accelerator	n/a
X3684A [S]	375-3052 [C]	Expert3D Lite PCI Frame Buffer	n/a
X3768A [S]	370-4362 [C]	PGX64 8/24-Bit Color Frame Buffer	n/a

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
U3008	525-1785 ⁴	48T59 NVRAM	80xxxxxx

⁴ Not available as a FRU. Use 525-1430 instead.

Input Device
Option #	Manufacturing Part #	Description	Previous Part #
X180A [S]	595-1865	SunButtons 32-key function I/O device	n/a
X190A [S]	595-1737	SunDials 8-dial interactive graphics I/O for 3-D	n/a
X499A [S]	595-5343	PCI Multimedia Kit	n/a
	370-1678 [C]	Sun Microphone II	n/a
	595-3723 [C]	CCD Camera II	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X6739A [S]	375-0086 [C] [S]	64MB PCI Fast Write Cache	n/a
X7005A ⁵ [S]	501-6005 [C]	256 MB DIMM	n/a
X7043A ⁶ [S]	501-5691 [C]	64MB DIMM	n/a
n/a	501-5218 [C]	Ultra 80 Memory Riser Board	n/a
n/a	501-6056 [C]	256MB DIMM w/ GAL	n/a

⁵ 512 MB (2 × 256MB DIMMS) with GAL (Gate Array Logic)
⁶ 128MB (2 × 64MB DIMM), 5V

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X1131A-64.1 [S]	375-0075 [C]	SunPCi 300MHz	n/a
X1131A-64.2 [S]	375-0095 [C]	SunPCi 400MHz	n/a
X2131A [S]	375-0131 [C]	SunPCi II 600MHz, 64MB memory	n/a
X2132A [S]	375-3051 [C]	SunPCi IIpro 733MHz coprocessor card	n/a
X7035A [S]	370-3801 [C]	SunPCi 128MB memory expansion	n/a
X7041A [S]	370-3800 [C]	SunPCi 64MB memory expansion	n/a
X7042A [S]	370-4294 [C]	SunPCi II 128MB memory expansion	n/a
X7044A [S]	370-4295 [C]	SunPCi II 256MB memory expansion	n/a
X7045A [S]	370-4430 [C]	SunPCi IIpro 512MB memory expansion	n/a
n/a	501-4155 [C]	Audio Module	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1357 [C]	Type A119-U 670 Watt AC Input Power Supply	n/a
n/a	300-1407 [C]	125 Watt DC-DC Converter with Fan	n/a
n/a	300-1411	Type A119-2 670 Watt Danish AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X9627A [N]	560-2548 [N]	72" Cabinet Rack Mount Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X6004A [S]	370-2729 [C]	Triple Density Floppy	n/a
X6106A [S]	370-3279 [C]	4-8GB 1/4" SLR Tape Drive	n/a
X6166A [S]	370-3415 [C]	SunCD 32 CD-ROM	n/a
X6168A [S]	390-0025 [C]	10X DVD-ROM Drive	n/a
X6208A [S]	370-2881 [C]	7-14GB 8 mm Tape Drive	n/a
X6212A [S]	370-2881 [C]	7-14GB 8 mm Tape Drive	n/a
X6213A [S]	370-2882 [C]	7-14GB 8 mm Tape Drive (Medium Grey Bezel)	n/a
X6256A [S]	370-2176 [C]	4-8GB 4 mm DDS-2 Tape Drive	n/a
X6282A [S]	370-2377 [C]	12-24GB 4 mm DDS-3 Tape Drive	n/a
X6295A [S]	390-0028 [C]	20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
X1032A [S]	501-5656 [C]	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)	n/a
X2222A [S]	501-5727 [C]	Dual FastEthernet / Dual SCSI PCI Adapter	n/a
X4422A [S]	501-6635 [C]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
X6540A [S]	375-0005 [C]	Dual Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6541A [S]	375-0006 [C]	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)	n/a
X6758A [S]	375-3057 ⁷ [C]	PCI Dual Ultra3 SCSI Host Adapter (LVD)	n/a
SG-XPCI2SCSI-LM320 [N]	375-3191 [N]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
n/a	540-3874	Floppy and SCSI Adapter (Drive Bay Assembly)	n/a
n/a	530-2691 [C]	SCSI Cable Assembly	n/a

⁷ The necessary drivers (SUNWqus, SUNWqusu, SUNWqusx, & SUNWqusux) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see How To article 1018123.1 for details.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-5168 [C]	0MB FRU	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

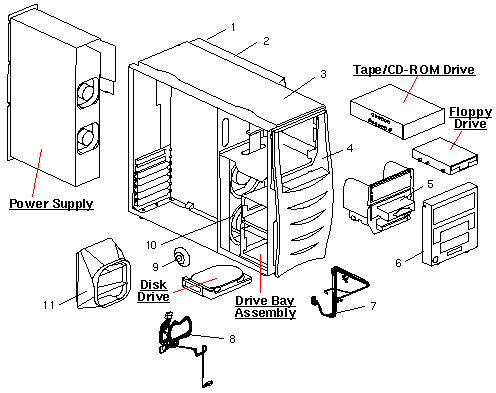

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	599-2256	Chassis Assembly
1	599-2269	Danish Chassis Assembly
1	540-4073	Receiving Chassis Assembly
1	540-3871	Chassis Assembly
1	540-3876	Chassis Housing Assembly
1	330-4033	Chassis Front
1	330-4034	Chassis Rear
1	330-4037	Peripheral Bay Shelf
1	340-5227	I/O Panel
2	330-2685	Right Side Cover
3	330-2686	Top Cover
4	540-3877	Curved Front Bezel Assembly
5	540-3265	Peripheral Assembly
5	340-4067	3 1/2" Device Internal Filler Panel
5	340-4068	5 1/4" Device Internal Filler Panel
5	340-4764	5 1/4" Filler Panel with 3 1/2" Cutout
5	540-3681	Peripheral Bracket with Faceplate
5	340-4858	Bracket
5	340-4859	Faceplate
6	540-3878	Peripheral Bezel Assembly
6	330-2186 [C]	5 1/4" Filler Panel
6	330-2187 [C]	3 1/2" Filler Panel
6	330-2324	Lightpipe (not replaceable)
6	330-2691	5 1/4" Filler Panel with 3 1/2" Cutout
6	330-2693	Bezel (not replaceable)
6	330-2736	Power Button (not replaceable)
7	530-2583 [C]	Combined Cable for Interlock, LED, Power Switch, and Speaker
8	530-2582 [C]	Peripheral DC Power Cable
9	370-1579 [C]	Speaker
10	540-3637	Fan Assembly 540-3637-04
10	330-2416	Fan Bracket
10	370-3718 [C]	120 mm Fan (x2)
10	330-2416	Fan Bracket
11	540-4048	System Board Airguide Assembly
11	330-2709	Airguide
11	330-2803	Dual Vane Snap
NS	150-3112 [C]	On/Off Switch
NS	150-3114 [C]	Interlock Switch
NS	240-2750	PCI Filler Panel
NS	250-1611 [C]	Memory Riser Torque Wrench
NS	330-2321	Foot
NS	330-2805 [C]	Processor Module Slot Filler Panel
NS	340-3559	Audio Module Filler Panel
NS	340-6091	Memory Riser Torque Tool (only use 340-6091-02)
NS	530-2346 [C]	Floppy Data Cable
NS	530-2937 [C]	Internal SCSI Cable, Option 939
NS	540-2540 [C]	Lockbox
NS	540-3875	Left Cover Assembly
NS	540-3948 [C]	System Board Shroud Assembly/CPU Card Cage
NS	330-2737	CPU Front Bracket
NS	330-2738	CPU Rear Bracket
NS	330-2739	CPU Center Bracket
NS	330-2740	CPU DRAM Bracket
