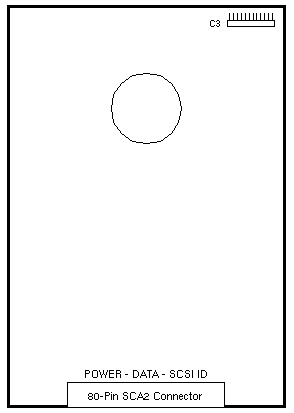

Hitachi DK32EJ-36NC (36.4GB)

3 1/2" 10000 RPM Low Voltage Differential Ultra-320 SCSI

Options 5126 / 5242 / 5243 / 5250 / 5257 / 5261 / 5267 / 5884 / 9254
Option XTA-3310-36GB-10K
Option XRA-SC1CA-36G10K

390-0111 540-4521 540-4904 540-5462
1" Height
Jura-E		 Spud Bracket FRU
w 1" Bracket 540-3024		 Spud Bracket FRU
w 1" Bracket 540-3024
w Plate 340-5928
or Plate 340-7269		 Spud Bracket FRU
w 1" Bracket 540-3024
540-5522 540-5693 540-5936 540-5996
3300 Series FRU
w 1" Bracket
XTA-3310-36GB-10K		 Netra t 1400/1405 FRU
NEBS Level 3
w 1" Bracket 540-3024		 V60x/V65x FRU Spud Bracket FRU
w 1" Bracket 540-3024
540-4520 595-6394
StorEdge D240
Center FRU
12-Slot A1000/D1000 FRU
w 1" Bracket 540-3024
w Plate 340-4288 or 340-6640
or Plate 340-5928 or 340-7269		 StorEdge D240
Left/Right FRU
Assembly 599-2593
or Assembly 540-5702
Drive 540-4521
w Bracket 340-6476

Netra t 1120/1125 Notes

  1. The Netra t 1120/1125 shipped with 540-4521 and 540-4919.
  2. 540-4919 replaced 540-4521 in the Netra t 1120/1125 in May 2001.
  3. Drive 390-0111 was added to Assembly 540-4521 in December 2002.
  4. Drive 390-0111 was not tested in the Netra t 1120/1125.

Netra ct 400/800 Notes

  1. The Netra ct 400/800 shipped with 540-4520 and 540-4689.
  2. 540-4689 replaced 540-4520 in the Netra ct 400/800 in April 2001.
  3. Drive 390-0111 was added to Assembly 540-4520 in December 2002.
  4. Drive 390-0111 was not tested in the Netra ct 400/800.

Netra st A1000/D1000 Notes

  1. The Netra st shipped with 540-4520, 540-4689, 540-5160, and 540-5451.
  2. 540-4520 replaced 540-4689 in the Netra st A1000/D1000 in September 2001.
  3. 540-5451 replaced 540-4520 in the Netra st A1000/D1000 in June 2002.
  4. Drive 390-0111 was added to Assembly 540-4520 in December 2002.
  5. Drive 390-0111 was not tested in the Netra st A1000/D1000.

Sun Fire V60x/V65x Notes

  1. ATO option 5126A includes 1" bracket 330-3696.
