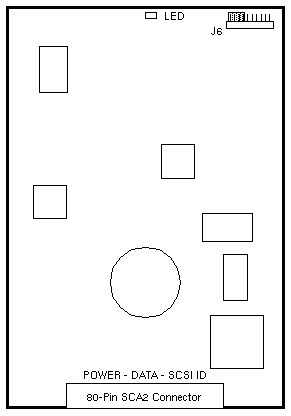

Seagate ST318305LC (18.2GB)

3 1/2" 10000 RPM Low Voltage Differential Ultra-3 SCSI

<a href="../../Systems/SupportHeaders/DISK_Sgte_ST318305LC.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Options 5164 / 5237 / 5238 / 5239 / 5247 / 5248 / 5880 / 6957

390-0085
1" Height Cheetah 5

540-4077	540-4177	540-4401
Netra ft 1800 FRU w Bracket 540-4884 w Plate 340-4288 or Plate 340-6640	Spud Bracket FRU w 1" Bracket 540-3024	Netra ct/st/T1/120 FRU NEBS Level 2/3 w 1" Bracket 540-3024 w Plate 340-4288 or Plate 340-6640 or Plate 340-5928 or Plate 340-7269
540-4910	540-4921	565-1569
Spud Bracket FRU w 1" Bracket 540-3024 w Plate 340-5928 or Plate 340-7269	Netra t1/t1400/1405 FRU NEBS Level 3 w 1" Bracket 540-3024	12K/15K SC Peripheral Bd <= 565-1569-03

540-4178	595-5471
StorEdge D240 Center FRU 12-Slot A1000/D1000 FRU w 1" Bracket 540-3024 w Plate 340-4288 or 340-6640 or Plate 340-5928 or 340-7269	StorEdge D240 Left/Right FRU Assembly 599-2398 or Assembly 540-5701 w Drive Assy 540-4177 w Bracket 340-6476

Note:

The Netra T1 used 540-4178 in place of 540-4401 in October 2001. (deviation WO_22211)
The Netra st A/D1000 became NEBS Level 2 when 390-0085 was added to Assembly 540-4401 in September 2001.
