Netra 20 Server - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-2850 ¹ [F]	3V Lithium Battery BR1632 / CR1632	n/a

¹ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Boot PROM
Socket	Manufacturing Part #	Patch
U2103	525-1807	111292
U2103	525-1899	111292

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X6988A [S]	501-6248 [F]	750MHz UltraSPARC III Module (DC Model)	n/a
X6990A [S]	501-5675 [F]	750MHz UltraSPARC III Module (AC Model)	n/a
X7009A [S]	501-6747 [F]	900MHz UltraSPARC III Cu Module (501-6002 screened for processor flatness)	n/a
X7310A [S]	501-6750 [F]	1200MHz UltraSPARC III Cu Module (501-6690 screened for processor flatness)	501-6690 [F]
n/a	501-6002 [F]	900MHz UltraSPARC III Cu Module	n/a
n/a	501-6485 [F]	1200MHz UltraSPARC III Cu Module	n/a
n/a	501-6690 [F]	1200MHz UltraSPARC III Cu Module	n/a
n/a	501-6745 [F]	1200MHz UltraSPARC III Cu Module (501-6485 screened for processor flatness)	501-6485 [F]
n/a	501-6805 [F]	1200MHz UltraSPARC III Cu Module	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	530-3032 [C]	Power Cable	n/a
n/a	560-2631 [F]	Power Cable Kit	n/a
	530-3026	Removable Media Power Cable	n/a
	530-3027	System Board to PDB Switch Cable	n/a
	530-3028	System Board to PDB Sense Cable	n/a
	530-3029	FC-AL Backplane to PDB Power Cable	n/a
	530-3030	FC-AL Backplane to PDB I²C Cable	n/a
n/a	560-2632 [F]	Data Cable Kit	n/a
	530-3031	SCCR to System Board to PDB Cable	n/a
	530-3033	Alarm Module to PDB to LED Board Cable	n/a
	530-3065	Removable Media SCSI Cable with 50-Pin to 68-Pin Adapter	n/a

Card/Reader
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-4435	System Configuration Card	n/a
n/a	370-5155 [F]	System Configuration Card	n/a
n/a	501-5965 [F]	System Configuration Card Reader	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1133A [S]	375-0130 [F]	Crypto Accelerator I	n/a
X1155A [S]	370-2728	High Speed Serial Interface PCI (HSI/P) 2.0	n/a
X1157A [S]	501-3028 [F]	SunATM-155/MFiber PCI 4.0	n/a
X1158A [S]	501-3027 [F]	SunATM-155/UTP PCI 4.0	n/a
X2156A [S]	375-0100 [F]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a
X4011A [S]	501-6039 [F]	Crypto Accelerator 4000 UTP (copper)	n/a
X4012A [S]	501-6040 [C]	Crypto Accelerator 4000 MMF (fiber)	n/a
X4111A [S]	501-6039 [F]	Crypto Accelerator 4000 UTP (copper)	n/a
X4112A [S]	501-6040 [C]	Crypto Accelerator 4000 MMF (fiber)	n/a
X6762A [S]	375-3089 [F]	Crypto Accelerator 1000	n/a
X7087A [S]	501-6543 [F]	Alarm/LOMlite2 Module (1200MHz)	n/a
n/a	501-5893 [F]	Alarm/LOMlite2 Module (750MHz/900MHz)	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X6724A [S]	540-4525 [F]	36.4GB - 10000 RPM FC-AL, Disk Assembly [SKU] with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0035	Seagate ST336704FC [ST336704FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0070	Seagate ST336605FC [ST336605FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0137	Seagate ST336607FC [ST336607FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X6805A [S]	540-6604 ⁴ [F] [S]	73.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks	540-5408 ³ [F]
	341-1986 [S]	Plate	n/a
	390-0256 [S]	Fujitsu MAW3073FC [MAW3073FCSUN73G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0269 [S]	Hitachi HUS1073FA [HUS1073FASUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0279 [S]	Seagate ST373207FC [ST373207FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X6819A [S]	540-5698 [F]	36.4GB - 10000 RPM FC-AL, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0035	Seagate ST336704FC [ST336704FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0070	Seagate ST336605FC [ST336605FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0137	Seagate ST336607FC [ST336607FSUN36G] (36.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0146	Hitachi DK32EJ-36FC [DK32EJ72FSUN72G] (36.4GB 10000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
X6855A [S]	540-5694 [F]	73.4GB - 10000 RPM FC-AL, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0071	Seagate ST373405FC [ST373405FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0121	Seagate ST373307FC [ST373307FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0122	Fujitsu MAP3735FC [MAP3735F SUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0123	Hitachi DK32EJ-72FC [DK32EJ72FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
n/a	540-5408 ² [F]	73.4GB - 10000 RPM FC-AL, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	341-1986 [S]	Plate	n/a
	390-0071	Seagate ST373405FC [ST373405FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0098	Fujitsu MAN3735FC [MAN3735F SUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0121	Seagate ST373307FC [ST373307FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0122	Fujitsu MAP3735FC [MAP3735F SUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0123	Hitachi DK32EJ-72FC [DK32EJ72FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0165	Seagate ST373207FC [ST373207FSUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0166	Fujitsu MAT3073FC [MAT3073F SUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	390-0167	Hitachi HUS1073FA [HUS1073FASUN72G] (73.4GB - 10000 RPM - FC-AL Disk)	n/a
	540-3024	1" SPUD Bracket	n/a

² Effective 27-Jan-2006, this assembly was replaced by 540-6604 in option X6805A.
³ Effective 27-Jan-2006, this assembly was replaced by 540-6604 in option X6805A.
⁴ Effective 27-Jan-2006, this assembly ships with option X6805A.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1033A [S]	501-5019 [F]	Sun FastEthernet PCI Adapter (FE/P) 2.0	n/a
X1034A [S]	501-5406 [F]	Quad FastEthernet PCI (QFE/P)	n/a
X1141A [S]	501-4373 [F]	Gigabit Ethernet PCI (GBE/P) 2.0	n/a
X1150A [S]	501-5902 [F]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X1151A [S]	501-5524 [F]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X3150A [S]	501-5902 [F]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X3151A [S]	501-5524 [F]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X4150A [S]	501-6719 [F]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A [S]	501-6762 [F]	GigaSwift Ethernet MMF (GFS)	n/a
X4444A ⁵ [S]	501-6522 [F]	Quad GigaSwift Ethernet UTP (QGE)	n/a
X4445A [S]	501-6738 [F]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a

⁵ If replacing X4444A with X4445A (same driver but different chip set), a reconfigure boot is required. See Problem article 1003454.1.

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [F]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [F]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [F]	4Gb PCI-X Dual FC Host Adapter	375-3294 [F]
X6727A [S]	375-3030 [F]	PCI Dual FC Host Adapter+	n/a
X6799A [S]	375-3019 ⁶ [F]	PCI Single FC Host Adapter	n/a
n/a	375-3294 [F]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	540-4794 [F]	2-Slot FC-AL Disk Backplane	n/a

⁶ 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3685A [S]	375-3069 [F]	XVR-500 Graphics Accelerator	n/a
X3780A [S]	375-3153 [F]	XVR-600 Graphics Accelerator	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7056A	4 GB (4 × 1GB SDRAM DIMMs) Memory Option
X7056A	501-7386 [F]	1GB SDRAM DIMM	501-6109 [F]
X7050A [S]	512MB (4 × 128MB SDRAM DIMMs)
X7050A [S]	501-4489 [F]	128MB SDRAM DIMM	n/a
X7051A [S]	2 GB (4 × 512MB SDRAM DIMMs) Memory Option
X7051A [S]	501-7385 [F]	512MB SDRAM DIMM	501-5030 [F] 540-5085
X7052A [S]	4 GB (4 × 1GB SDRAM DIMMs)
X7052A [S]	501-5031 [F]	1GB SDRAM DIMM	n/a
X7053A [S]	1 GB (4 × 256MB SDRAM DIMMs) Memory Option
X7053A [S]	501-5401 [F]	256MB SDRAM DIMM	540-5084
X7061A ¹² [S]	1 GB (4 × 256MB SDRAM DIMMs)
X7061A ¹² [S]	501-6175 [F]	256MB SDRAM DIMM CR1/LC1	n/a
X7062A ¹³ [S]	2 GB (4 × 512MB SDRAM DIMMs) Memory Option
X7062A ¹³ [S]	501-6174 [F]	512MB SDRAM DIMM CR1/LC1	n/a
n/a	501-5030 [F]	512MB SDRAM DIMM	540-5085
n/a	501-6109 [F]	1GB SDRAM DIMM	n/a
n/a	540-5086 [F]	1GB SDRAM DIMM	n/a
n/a	F511-1030 ⁸ [F]	Package of 25 × 512MB SDRAM DIMMs [SKU]	n/a
n/a	501-7385 [F]	512MB SDRAM DIMM	501-5030 [F] 540-5085
n/a	F511-1031 ¹⁰ [F]	Package of 25 × 1GB SDRAM DIMMs [SKU]	n/a
n/a	501-7386 [F]	1GB SDRAM DIMM	501-6109 [F]

⁸ See FAB article1000920.1 (formerly 201233) for details.
¹⁰ See FAB article1000920.1 (formerly 201233) for details.
¹² For 1200MHz models only
¹³ For 1200MHz models only

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X949A [S]	595-5302	Wago DC Connector Set	n/a
	130-4361	DC Connector	n/a
	230-1708	DC Connector Strain Relief	n/a
	230-1711	DC Connector Opening Lever	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1496 [F]	Type A161 498 Watt AC Input Power Supply	n/a
n/a	300-1497 [F]	Type D139 498 Watt DC Input Power Supply	n/a
n/a	540-4795 [F]	Power Distribution Assembly	n/a
n/a	370-4317	Power Distribution Board	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X6845A [S]	595-6721	Netra 20 Rack Mount Kit for Sun Rack 900	n/a
X6902A [S]	595-4630	23" Rack Mount Kit	n/a
X6903A [S]	595-4631	24" Rack Mount Kit	n/a
X6904A [S]	595-4632	600 mm Rack Mount Kit	n/a
X7099A [S]	595-5832	19" Slide Adapter Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X6168A [S]	390-0025 [F]	10X DVD-ROM Drive	n/a
X6295A [S]	390-0028 [F]	20-40GB 4 mm DDS-4 Tape Drive (Medium Grey Bezel)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI2SCSI-LM320 [S]	375-3191 [F]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
SGXPCI2SCSILM320-Z [S]	7050788 [F]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 ¹⁵ [F]
X1032A [S]	501-5656 [F]	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)	n/a
X2222A [S]	501-5727 [F]	Dual FastEthernet / Dual SCSI PCI Adapter	n/a
X4422A [S]	501-6635 [F]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
X6540A [S]	375-0005 [F]	Dual Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6541A [S]	375-0006 [F]	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)	n/a
X6542A [S]	375-0078 [F]	SCSI RAID Controller (SRC/P)	n/a
X6758A [S]	375-3057 ¹⁶ [F]	PCI Dual Ultra3 SCSI Host Adapter (LVD)	n/a
n/a	375-3365 ¹⁴ [F]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a

¹⁴ Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
¹⁵ Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
¹⁶ The necessary drivers (SUNWqus, SUNWqusu, SUNWqusx, & SUNWqusux) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see How To article 1018123.1 for details.

Switch/Hub
Option #	Manufacturing Part #	Description	Previous Part #
X6746A [S]	Redundant FC 8-port Switch Option (two 8-port switches)
X6746A [S]	540-4372 [F]	StorEdge Network FC Switch-8	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-5938 [F]	0MB FRU (SCHIZO 2.2)	n/a
n/a	501-6230 ¹⁷ [F]	0MB FRU (SCHIZO >=2.2)	n/a
n/a	501-6560 [F]	0MB FRU (SCHIZO 2.5)	n/a

¹⁷ 501-6230-07 is not compatible with Netra 20.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

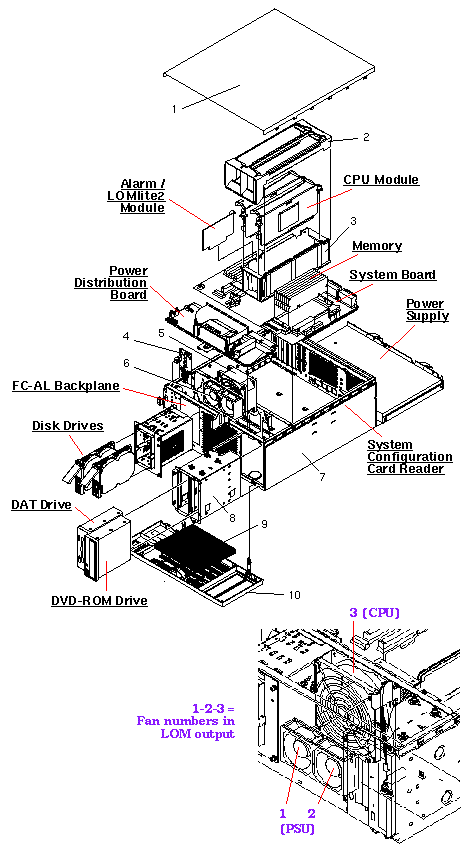

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	540-4891	Top Cover
2-3	540-4696 [F]	Shroud/Shroud Cover Assembly
2	540-4137	CPU Module Shroud Cover Assembly
2	330-2706	CPU Module Shroud Cover
3	540-4136	System Board Shroud Assembly
3	330-2705	System Board Shroud
4	501-5915 [F]	LED Card and Switch Assembly
5	370-4360 [F]	Fan Assembly, 127mm (CPU)
6	540-5023 [F]	Fan Assembly, 80mm (PSU)
7	540-4745	Chassis Assembly
8	540-4892	Removable Media Assembly
9	595-6161	Air Filter Pack, Option X7216A [S]
10	595-6162	Front Fascia Kit, Option X7217A [S]
NS	330-3257	DAT Panel
NS	330-3258	CD Panel
NS	330-3272	Air Filter (obsolete)
NS	340-7006	Air Filter Frame
NS	340-7023	DAT/CD-ROM Drive Filler Panel
NS	370-3273	PCI Filler Panel
NS	540-4869	Front Bezel
NS	540-4995	Disk Drive Filler Panel
