StorEdge Network FC Switch-8

Codenames: Cobra (8-port) Mamba (16-port) Python (Phase 3)

Options 6744 / 6746

370-4035	540-4372
Ancor SANbox-8	FRU Assembly

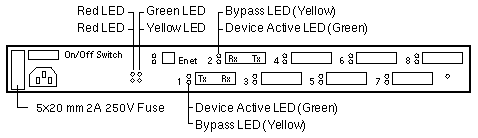

Front View

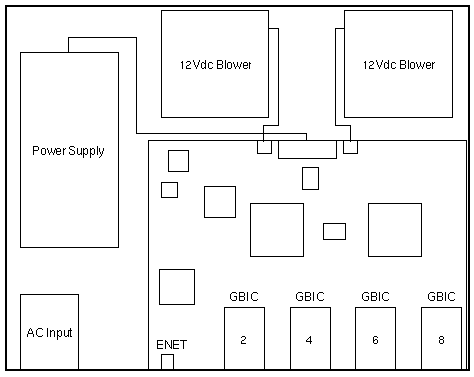

Top View with Cover Removed

Full Components List

Notes

1. All switches in the SAN must contain matching firmware versions.
2. 370-4035-01 has f/w 3.02.67, -02 has 3.03.51, and -03 has 3.04.60.
3. X6731A is the option for the supported GBIC. GBICs are not included with the switch.

References

1. Network FC Switch-8 Installation and Configuration Guide, 806-2877.
2. Network FC Switch-8 Troubleshooting Guide, 806-5514.
3. Network FC Switch FRU Installation, 816-1290.
4. Brocade SAN Configuration Descriptions.
5. SOC+XT SAN Limited Program Overview and Purpose.
