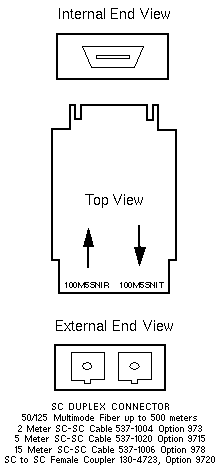

1Gigabit/Sec Short Wave GBIC Transceiver

FC100/S / FC100/P / PSX-1000 / DSP-1000

Option 6731

370-2303-02	370-2303-03	370-3975
830-870 nm Option 6731 IBM 21H9750 Vixel 00550037-904 CD-ROM Laser	830-870 nm Option 6731 IBM 21H9870 Vixel 00651050-70 VCSEL Laser	830-870 nm No Option Number IBM 21H9750 Relabeled 370-2303-02 CD-ROM Laser

370-4379	370-6000
830-870 nm No Option Number Finisar FTR-8519 A5x00 Only VCSEL Laser	830-870 nm No Option Number Finisar FTR-8519 PSX-1000/DSP-1000 VCSEL Laser

Notes

1. The minimum operating system is Solaris 2.5.1 Hardware 8/97.
2. GBIC 370-4379 is factory installed in the A5x000.
3. GBIC 370-4379 is not available as a FRU.
4. GBIC 370-4379 is not compatible with the FC100/S or FC100/P. The latch design makes the device difficult to remove.

References

1. GBIC Installation and Removal, 805-3885.
2. Sun StorageTek SBus FC-100 Host Adapter Documentation.
3. Sun StorageTek A5000 Array Documentation.
4. Sun StorEdge PCI FC-100/P Host Adapter Documentation.
