Sun Fire T2000 (post July 2006) - Full Components List

Batteries Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel Graphics I/O Memory Miscellaneous Power Rack Removable Media SCSI System Board System Service Processor Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: The the Sun Fire T2000 server uses a 550 Watt power supply and uses 1 of the 2 PCI-X slots for the SAS controller. The Sun Fire T2000 (post July 2006) server uses a 450 Watt power supply and support for the SAS controller is on the I/O board.

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-1204 2 [C]	3V Lithium Coin Cell Battery	n/a

2 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	n/a
X332T [S]	International Power Cord Kit
	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	F530-3686 [F]	Cable Kit [SKU]	n/a
	530-3362	Front I/O Board to System Board Cable	n/a
	530-3364	Disk Backplane Power Cable	n/a
	530-3367	PDB to System Board (DVD/PSU/I2C) cable	n/a
	530-3440	SAS Cable Set	n/a
	530-3436	HDD0 to PHY0 SAS Cable, 508mm	n/a
	530-3437	HDD1 to PHY1 SAS Cable, 501mm	n/a
	530-3438	HDD2 to PHY2 SAS Cable, 356mm	n/a
	530-3439	HDD3 to PHY3 SAS Cable, 336mm	n/a
	541-0745	Blower Cable	n/a
	541-1472	Bus Bar Set	n/a
	541-1474	DVD Cable Assembly	n/a
	530-3365	DVD Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X1333A-4 [S]	375-3418 [C]	Infiniband PCI-X Card	n/a
X6000A 3 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

3 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7503 [F]	4-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CD-146G10KZ [S]	540-7151 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2CD-73G10KZ [S]	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1027A-Z 4 [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4150A-2 [S]	501-7415 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A-2 [S]	501-7430 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C]  + 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X5544A-4 [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
	371-2207	Bracket Low-Profile	n/a

4 Requires SR X5558A or LR X5558A XFP Transceiver.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6917 [F]	Server Fan Board (A65/A87)	n/a
n/a	541-0275 [C]	CPU fan	n/a
n/a	541-0645 [C]	Rear Fan Tray	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-EM4-Z [S]	375-3398 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 5 [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a
X3777 [S]	375-3433 [C]	XVR-200 Graphics Accelerator	n/a

5 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6978 [F]	Front I/O Board w/Cover Interlock Switch	n/a

NOTE: SPARC Platforms (Sun Fire T1000/T2000) Device Path Information (article 1005907.1)

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7800A [S]	1GB (2 × 512MB DDR2) Memory Expansion Kit
	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
X7801A [S]	2GB (2 × 1GB DDR2) Memory Expansion Kit
	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
X7802A [S]	4GB (2 × 2GB DDR2) Memory Expansion Kit
	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
X7803A [S]	8GB (2 × 4GB DDR2) Memory Expansion Kit
	370-6210 [C]	4GB DDR2 DIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6916 [F]	LED/Switch Board (A65/A87)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7021 6 [F]	Power Distribution Board	n/a
n/a	F300-1735	Type A208 450 Watt AC Input Power Supply	n/a
	300-1735 [C]	Type A208 450 AC Input Watt Power Supply	n/a
	300-1817	Type A208 450 Watt AC Input Power Supply	n/a
	300-2110	Type A208 450 Watt Power Supply	n/a

6 An electronic copy of the chassis serial number is located in a CPROM at U20. Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system. The Sun Fire T2000 Server Service Manual describes the required service commands.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-7668 [C]	Cable Management Arm	n/a
n/a	370-7669 [C]	Slide Rail Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	390-0251 [F]	Slimline 8X DVD-ROM / 24X CD-Writer	n/a
n/a	541-1474	DVD Cable Assembly	n/a
	530-3365	DVD Cable	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI8SAS-E-Z [S]	7050791 [C]	3Gb PCI-X SAS 8-Port Host Adapter	375-3488 [C]
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGXPCI1SCSILM320-Z [S]	375-3366 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a
n/a	375-3488 [C]	3Gb PCI-X SAS 8-Port Host Adapter	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1438 [F]	0MB 6-Core 1.0GHz System Board	n/a
	541-1437-01	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-01	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-1453 [F]	0MB 8-Core 1.2GHz System Board	n/a
	541-1437-01	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-01	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-1454 [F]	0MB 8-Core 1.0GHz System Board	n/a
	541-1437-01	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-01	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-1455 [F]	0MB 4-Core 1.0GHz System Board	n/a
	541-1437-01	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-01	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2149 [F]	0MB 8-Core 1.4GHz System Board	n/a
	541-1437-01	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-01	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2405 [F]	0MB 6-Core 1.0GHz System Board	n/a
	541-1437-02	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-02	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2407 [F]	0MB 8-Core 1.2GHz System Board	n/a
	541-1437-02	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-02	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2408 [F]	0MB 8-Core 1.0GHz System Board	n/a
	541-1437-02	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-02	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2409 [F]	0MB 4-Core 1.0GHz System Board	n/a
	541-1437-02	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-02	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2436 [F]	0MB 8-Core 1.4GHz System Board	n/a
	541-1437-02	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7502-02	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a

NOTE: The I/O and System Boards are a single assembly.

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7500 [F]	Service Processor	n/a
	150-1204 7 [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a
n/a	501-7764 [F]	Service Processor	n/a
	150-1204 8 [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a

7 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12 8 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

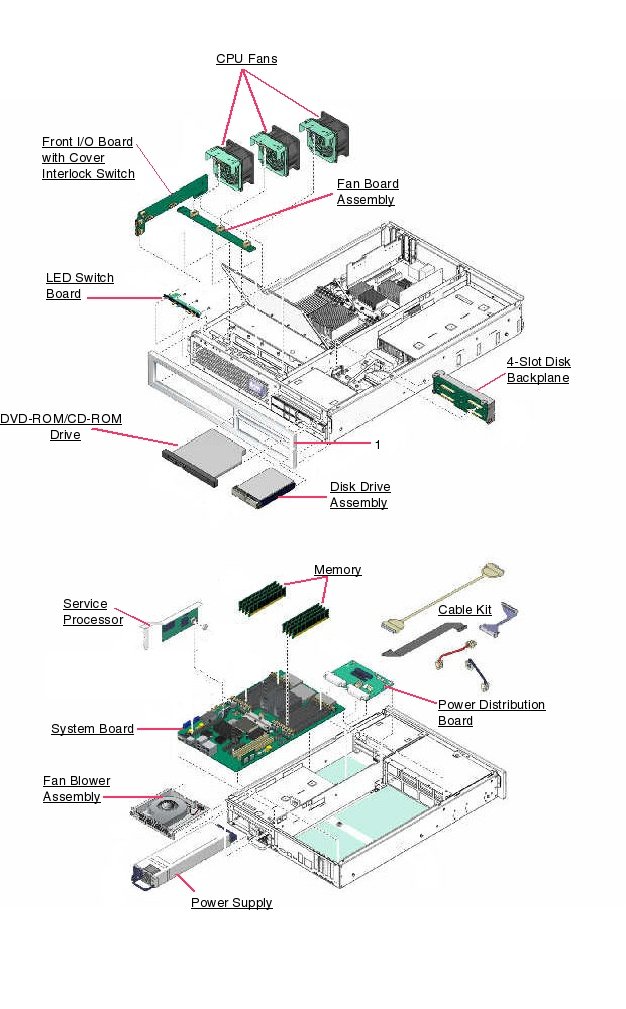

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	530-3440	SAS Cable Set
-	530-3436	HDD0 to PHY0 SAS Cable, 508mm
-	530-3437	HDD1 to PHY1 SAS Cable, 501mm
-	530-3438	HDD2 to PHY2 SAS Cable, 356mm
-	530-3439	HDD3 to PHY3 SAS Cable, 336mm
1	541-0243	Front Bezel Assembly
NS	330-3955	Power Supply Air Baffle/Damper
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-3623 [C]	Shielded RJ45 to RJ45 Cable, 4M
NS	541-0229	Chassis Subassembly
	541-0645 [C]	Rear Fan Tray
NS	541-0231	Empty 4-Disk Drive/DVD Bay Assembly
NS	541-0251	Chassis Assembly
	501-6916 [F]	LED/Switch Board (A65/A87)
	501-6978 [F]	Front I/O Board w/Cover Interlock Switch
NS	541-0325	DVD Bezel
NS	541-0605 [F]	Blank Disk Drive Filler
NS	541-0720	Front Top Cover Assembly with Door
NS	541-1456	PCI Filler Panel
NS	541-1461	Chassis Subassembly
NS	541-1462	Rear Top Cover Assembly
NS	541-1464	CPU Fan Guard
NS	541-1472	Bus Bar Set
