Options 7800A / 7801A / 7802A / 7803A
Options SEKX2A1Z / SEKX2B1Z / SEKX2C1Z / SEKX2D1Z

370-6207	370-6208	370-6209	370-6210

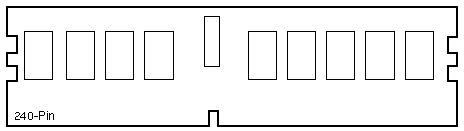

DDR2-533/PC2-4200 ECC/Registered 512MB DIMM 1GB Option 7800A 1GB Option SEKX2A1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 1GB DIMM 2GB Option 7801A 2GB Option SEKX2B1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 2GB DIMM 4GB Option 7802A 4GB Option SEKX2C1Z	DDR2-533/PC2-4200 DDR2-667/PC2-5300 ECC/Registered 4GB DIMM 8GB Option 7803A 8GB Option SEKX2D1Z

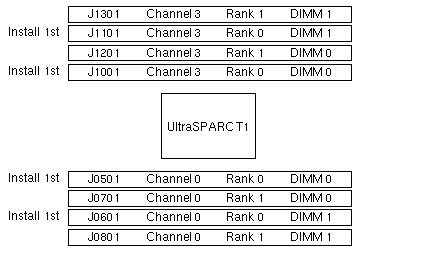

T1000 Memory Map

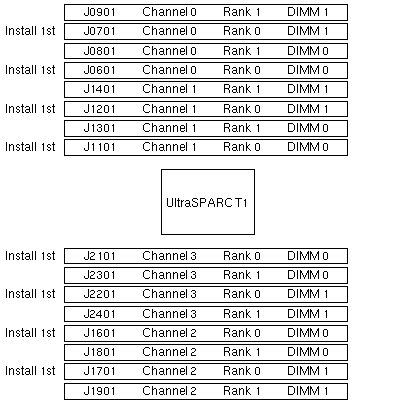

T2000 Memory Map

Sun Fire T1000 Codename: Erie Sun Fire T2000 Codename: Ontario Netra T2000 Codename: Pelton

Notes

1. The packing list describes 370-6208 and 370-6209 as 533MHz.
2. DDR2-667 DIMMs were qualified in September 2007.

T1000 Notes

1. The minimum T1000 memory requirement is four Rank 0 DIMMs.
2. All DIMMs must have identical capacity.
3. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

T2000 Notes

1. The minimum T2000 memory requirement is eight Rank 0 DIMMs.
2. All DIMMs must have identical capacity.
3. An example error message from the DIMM in J2401 is MB/CMP0/CH3/R1/D1 .

References

1. Netra T2000 Server Documentation.
2. Sun SPARC Enterprise T1000 Server Documentation.
3. Sun SPARC Enterprise T2000 Server Documentation.
4. Sun Fire T1000 Server Documentation.
5. Sun Fire T2000 Server Documentation.
