Dual 10Gigabit/Sec (4x) InfiniBand
Host Channel Adapter

Option 1236A-Z

375-3382
Mellanox InfiniHost III Ex MHEL-CF256-T x8 PCI Express

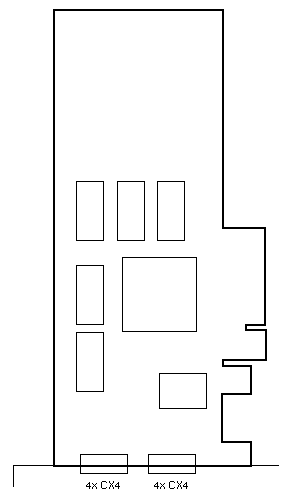

Additional Information & Views

Notes

1. The minimum Solaris SPARC operating system is Solaris 10 Update 1.
2. The minimum Solaris X86 operating system is Solaris 10 X86 Update 1.
3. Board Option 1236 does not include InfiniBand cables.
4. Cable Option 9280 includes 2 Meter 4x-12x InfiniBand Cable 530-3387.
5. Cable Option 9281 includes 5 Meter 4x-12x InfiniBand Cable 530-3386.
6. The Option includes a Standard Bracket and a Low Profile Bracket.
7. PCI Identifiers are Vendor ID 0x15b3, Device ID 0x6278, and Subsystem ID 0x6278.
8. Vital Product Data VPD=PN is 375-3382.

References

1. Sun Dual Port 4x IB Host Channel Adapter PCIe Documentation
