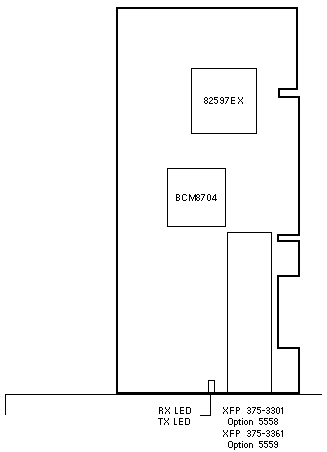

Single 10-Gigabit Ethernet Controller

Codename: Kirkwood

Options 4455 / 5544

501-7036	501-7163
Standard Bracket 370-7665 3.3V   32/64Bit   133MHz Option 5544A/X5544A	Low-Profile Bracket 370-7792 3.3V   32/64Bit   133MHz Option 4455A

Additional Information & Views

Notes

1. The ixge or ixgb device driver is used.
   Only ixgb is available for x86/x64.
2. The minimum SPARC OS is Solaris 9 9/04 or Solaris 10 3/05.
3. Red Hat Enterprise Linux 3.0 is supported.
4. Option 4455A includes 501-7163 and XFP MMF Transceiver 375-3301.
5. Option 5544A includes 501-7036 and XFP MMF Transceiver 375-3301.
6. Option X5544A includes 501-7036 and Low-Profile Bracket 370-7792.
7. Option X5544A does not include an XFP Transceiver. Order X5558A or X5560A-Z.
8. The 501-7163 is not available as a FRU. Order F501-7036.
9. FRU F501-7036 includes 501-7036, Bracket 370-7665, and Bracket 370-7792.

References

1. Sun 10-Gigabit Ethernet PCI-X Adapter Documentation.

Notes

1. The ixge or ixgb device driver is used.
   Only ixgb is available for x86/x64.
2. The minimum SPARC OS is Solaris 9 9/04 or Solaris 10 3/05.
3. Red Hat Enterprise Linux 3.0 is supported.
4. Option 4455A-4 includes 501-7414 and XFP MMF Transceiver 375-3301.
5. Option 4466A includes 501-7414 and XFP SMF Transceiver 375-3361.
6. Option 5544A-4 includes 501-7413 and XFP MMF Transceiver 375-3301.
7. Option 6644A includes 501-7413 and XFP SMF Transceiver 375-3361.
8. Option X5544A-4 includes 501-7413 and Low-Profile Bracket 370-7792.
9. Option X5544A-4 does not include an XFP Transceiver. Order X5558A or X5560A-Z.
10. The 501-7414 is not available as a FRU. Order F501-7413.
11. FRU F501-7413 includes 501-7413, Bracket 370-7665, and Bracket 370-7792.

References

1. Sun 10-Gigabit Ethernet PCI-X Adapter Documentation.
