8-Port 3Gbps SAS/SATA HBA

Codename: Pandora

Option SG-XPCIE8SAS-E-Z
Option SG-XPCIE8SAS-E-Z-N
Option SG-XPCIESAS-S7-Z

375-3487	7050793
LSI SAS3801E-S x8 PCI Express	LSI SAS3801E-S x8 PCI Express

Additional Information & Views

Notes

1. The minimum Solaris operating system is Solaris 10 6/06.
2. Documentation is not included.

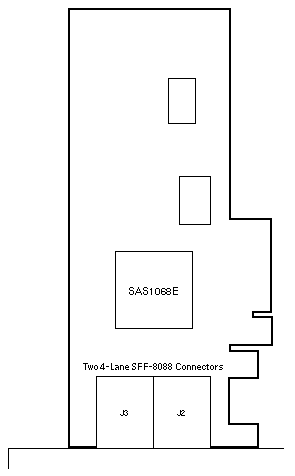

3. SAS Port numbering is unknown, and intentionally omitted from the illustration.
4. HBA 375-3487-01 supports 8 addresses.
   HBA 375-3487-02 supports 244 addresses.
5. HBA >=375-3487-02 is required when this card is used with the J4200 or J4400 storage arrays.
6. SATA disk drive write caching is disabled on 375-3487-03.
   Write caching of SATA drives not attached to a RAID controller can lead to data integrity issues if unexpected power loss occurs.
7. PCI Identifiers are Vendor ID 0x1000 and Device ID 0x0058.
8. Vital Product Data VPD=PN is 375-3357 for both part numbers.
9. See FAB article 1019101.1 for details about a potential system problem with device driver patches 125081 and 125082.

Storage 7000 Notes

1. The S7310 was released in May 2009.
   The S7410 was released in December 2008.
2. HBA 375-3487-05 released in November 2009. (WO_42311 to fix BugID 15539003 [SUNBT6800183])
3. Mixing 375-3487-04 and 375-3487-05 in the S7310 or S7410 is not supported.
4. Sun Storage 7000 Software >=2009.Q3.2.0 (2009.09.01.2.0,1-1.6) is required.
5. Sun Storage J4400 Simm firmware 3R24 is recommended. (BugID 15611745 [SUNBT6912002])
6. SG-XPCIE8SAS-E-Z with 375-3487-04 is planned to ship until December 2010.
7. SG-PCIE8SAS-E-Z and SG-XPCIESAS-S7-Z with 375-3487-05 were released in November 2009. (WO_42311)
8. SG-XPCIESAS-S7-Z was announced in June 2010.

References

1. StorageTek PCIe SAS Host Bus Adapter Documentation
