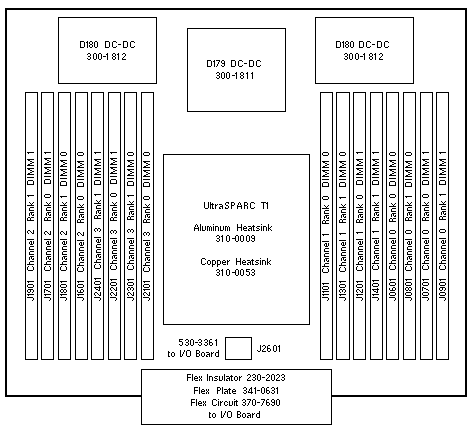

Sun Fire T2000

CPU/Memory Board

501-6843	541-0598
0MB w/o CPU CPU/Memory	0MB Assembly w/o CPU CPU/Memory + I/O

541-0569	541-0599	541-0570	541-0827
0MB FRU CPU/Memory + I/O 4-Core 1.0GHz	0MB FRU CPU/Memory + I/O 6-Core 1.0GHz	0MB FRU CPU/Memory + I/O 8-Core 1.0GHz	0MB FRU CPU/Memory + I/O 8-Core 1.2GHz

Sun Fire T2000 Codename: Ontario

Notes

1. The minimum operating system is Solaris 10 3/05 HW2.
2. The minimum operating system for system firmware &qt;=6.1.x is Solaris 10 1/06.
3. The minimum T2000 memory requirement is eight Rank 0 DIMMs.
4. An example error message from the DIMM in J2401 is MB/CMP0/CH3/R1/D1.
5. Use the showsc version -v and showhost commands to view firmware revisions.
6. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.

References

1. Sun Fire T2000 Server Documentation.
2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.

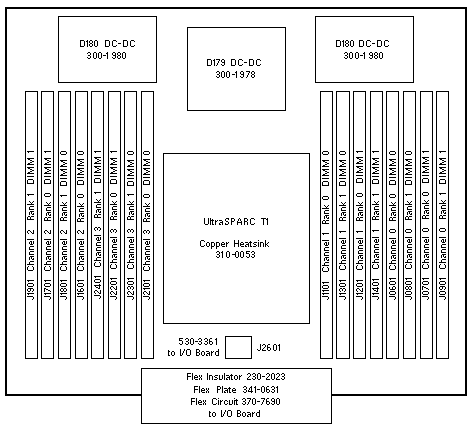

Sun Fire T2000 Codename: Ontario Netra T2000 Codename: Pelton SPARC Enterprise T2000 Codename: Ontario+

Notes

1. The minimum T2000 memory requirement is eight Rank 0 DIMMs.
2. An example error message from the DIMM in J2401 is MB/CMP0/CH3/R1/D1.
3. Use the showsc version -v and showhost commands to view firmware revisions.
4. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.

Sun Fire T2000 Notes

1. The minimum operating system is Solaris 10 1/06.

Netra T2000 Notes

1. The minimum operating system is Solaris 10 6/06.

SPARC Enterprise T2000 Notes

1. The minimum operating system is Solaris 10 11/06.

References

1. Sun Fire T2000 Server Documentation.
2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.
3. Netra T2000 Server Documentation.
4. Sun SPARC Enterprise T2000 Server Documentation.
