8-Port 3Gbps SAS RAID HBA (External)

Codename: Prometheus

Option SGXPCIESAS-R-EXT-Z

371-3253	375-3537
Lithium Ion Battery	Adaptec ASR-5085/Voodoo08 Intel PCA-00277-xx-SUN x8 PCI Express

Additional Information & Views

Notes

1. The minimum Solaris OS for x64 and x86 is Solaris 10 8/07.
2. The minimum Solaris OS for SPARC (64-bit) is Solaris 10 10/08.
3. The 8-Port SAS HBA was released in August 2008. (WO_39588)
4. See the SAS RAID HBA Installation Guide (820-1260) for a specific list of minimum supported versions of Solaris per platform.
5. Option SGXPCIESAS-R-EXT-Z does not include cables or documentation.

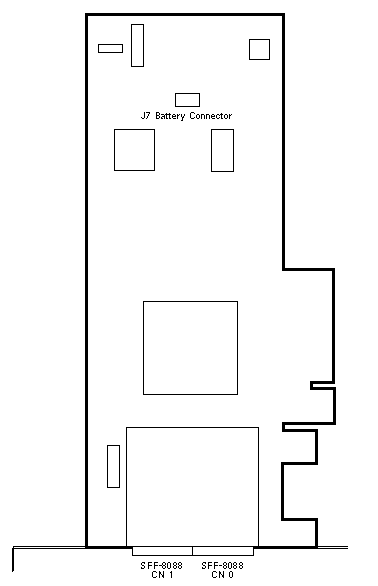

6. SAS Port numbering is unknown, and intentionally omitted from the illustration.
7. HBA 375-3537-04 with firmware 16795 fixes RAID 6 corruption. (WO_42254)

References

1. RAID Management Software Documentation
2. Sun StorageTek 3 Gb SAS RAID HBA, External Documentation
