Hitachi HUC101473CSS300 (73.4GB)

2 1/2" 10000 RPM 3Gb/Sec Serial Attached SCSI

Option SEAX3B11Z
Option SESX3A11Z
Option XRA-SS2CF-73G10K
Option XRA-SS2CD-73G10KZ
Option XRB-SS2CD-73G10KZ
Option XRA-SS2ND-73G10K

390-0376
15mm Height
Cobra B
540-6611 540-6643 540-7354 540-7697 541-1959
Nemo Bracket FRU
15mm Bracket 541-3004
XRA-SS2CD-73G10KZ
XRB-SS2CD-73G10KZ
not qualified on V445		 Nemo Bracket FRU
15mm Bracket 541-3004
XRA-SS2ND-73G10K
NEBS		 Marlin Bracket FRU
15mm Bracket 541-2123
XRA-SS2CF-73G10K
SESX3A11Z		 CT900 FRU
4013A-Z		 T1000 FRU
Grommet 330-4383
SS2CG-73G10KZ
SEAX3B11Z

Notes

  1. Drive 390-0376 was released and added to 540-6611 and 541-1959 in November 2007. (WO_38136)
  2. Drive 390-0376 was added to 540-7354 in January 2008. (WO_38386)
  3. Drive 390-0376 was added to 540-7697 in March 2008. (WO_38642)
  4. Drive 390-0376 was added to 540-6643 in April 2008. (WO_39041)
  5. Drive 390-0376 is not qualified for use in the Sun Fire V445. (WO_38136)
  6. Nemo Bracket 541-3004 includes Mylar Insulator 230-4811 required by 390-0376.

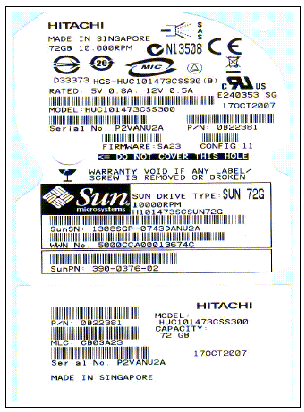

  7. The Hitachi model number on the serial number label is HUC101473CSS300.
  8. The Sun model number on the serial number label is H101473SCSUN72G.
  9. The Product Identification in SCSI Inquiry bytes 16-31 is H101473SCSUN72G.
