Service Processor

501-7130	501-7500	501-7764	501-7849
FAB 270-7130 Sun Fire T2000	FAB 270-7130 Sun Fire T2000	FAB 270-7130 Sun Fire T2000	FAB 270-7130 Enterprise T2000

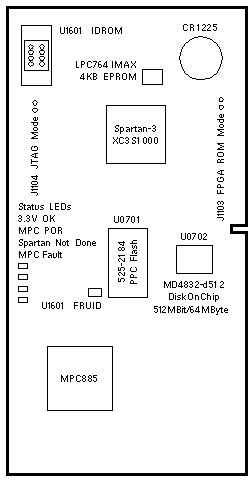

Top Side View

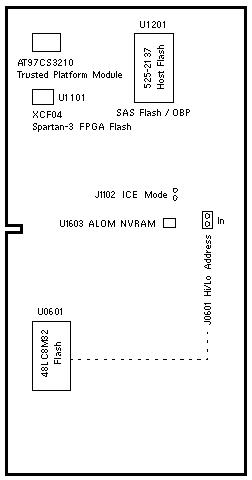

Bottom Side View

Sun Fire T2000 Codename: Ontario

Notes

1. Use the showsc version -v command to view the following firmware revisions:
   sc> showsc version -v
   ALOM-CMT 1.0.3
   VBSC 1.0.1
2. Use the showhost command to view the following firmware revisions:
   sc> showhost
   Reset V1.0.0
   Hypervisor 1.0.1
   OBP 4.19.0
   MPT SAS FCode Version 1.00.37
   Integrated POST 4.19.2

References

1. Sun Fire T2000 Server Documentation
2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.
3. Sun SPARC Enterprise T2000 Server Documentation
