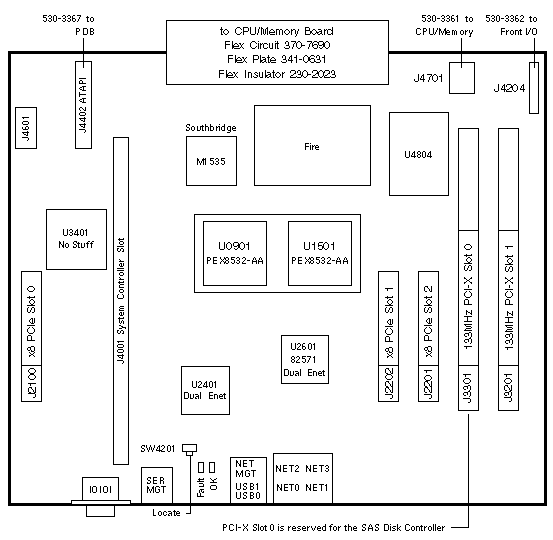

Sun Fire T2000

I/O Board

501-6955 541-0598
I/O Board 0MB Assembly w/o CPU
CPU/Memory + I/O
541-0569 541-0599 541-0570 541-0827
0MB FRU
CPU/Memory + I/O
4-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
6-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.2GHz

Sun Fire T2000 PCI Slot Map

PHYSICAL DEVICE PATH NOTES
PCI-E Slot 0 /pci@780/pci@0/pci@8 x8/M2
PCI-E Slot 1 /pci@7c0/pci@0/pci@8 x8/M2
PCI-E Slot 2 /pci@7c0/pci@0/pci@9 x8/M2
PCI-X Slot 0 /pci@7c0/pci@0/pci@1/pci@0,2/@2 133MHz 64-bit-3.3v/M2
PCI-X Slot 1 /pci@7c0/pci@0/pci@1/pci@0,2/@1 133MHz 64-bit-3.3v/M2
Network 0 /pci@780/pci@0/pci@1/network@0
Network 1 /pci@780/pci@0/pci@1/network@0,1
Network 2 /pci@7c0/pci@0/pci@2/network@0
Network 3 /pci@7c0/pci@0/pci@2/network@0,1
CDROM Drive /pci@7c0/pci@0/pci@1/pci@0/ide@8
USB0 /pci@7c0/pci@0/pci@1/pci@0/usb@5 Rear device@1 on bottom, device@2 on top
USB1 /pci@7c0/pci@0/pci@1/pci@0/usb@6
/pci@7c0/pci@0/pci@1/pci@0/usb@6/hub@1		 Front hub@1 always connected on front IO device@1 on bottom, device@2 on top

Initial Sun Fire T2000 systems utilizing the factory installed PCI-X card (370-7696) will show internal disk drives under this device path:
/pci@7c0/pci@0/pci@1/pci@0,2/LSILogic,sas@2/sd@<device instance>

Later Sun Fire T2000 systems utilizing the onboard PCI1064E controller will show internal disk drives under this device path:
/pci@780/pci@0/pci@9/scsi@0/sd@<device instance>

Sun Fire T2000 Codename: Ontario

Notes

  1. The minimum operating system is Solaris 10 3/05 HW2.
  2. The minimum OS for system firmware >=6.1.x is Solaris 10 1/06 (S10 U1).
  3. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.
  4. Serial Attached SCSI (SAS) is external to the pre July 2006 I/O Board 501-6955. See 370-7696.
    (The post July 2006 I/O Board has onboard SAS - see 501-7502-01 or 501-7502-02.)

References

  1. Sun Fire T2000 Server Documentation.
  2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.

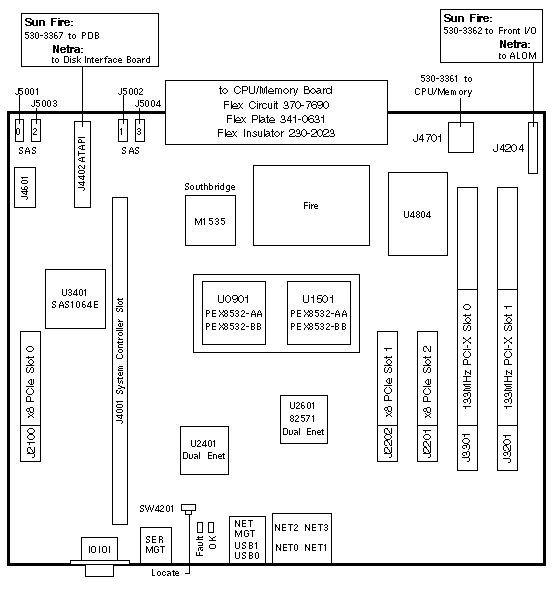

Sun Fire T2000 / Netra T2000

I/O Board

501-7502-01 541-1437-01
I/O Board 0MB Assembly w/o CPU
CPU/Memory + I/O
541-1455 541-1438 541-1454 541-1453 541-2149
0MB FRU
CPU/Memory + I/O
4-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
6-Core 1.0GHz>/TD> 		0MB FRU
CPU/Memory + I/O
8-Core 1.0GHz
not supported in
Netra T2000		 0MB FRU
CPU/Memory + I/O
8-Core 1.2GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.4GHz
not supported in
Netra T2000

Sun Fire T2000 PCI Slot Map (not applicable to Netra T2000)

PHYSICAL DEVICE PATH NOTES
PCI-E Slot 0 /pci@780/pci@0/pci@8 x8/M2
PCI-E Slot 1 /pci@7c0/pci@0/pci@8 x8/M2
PCI-E Slot 2 /pci@7c0/pci@0/pci@9 x8/M2
PCI-X Slot 0 /pci@7c0/pci@0/pci@1/pci@0,2/@2 133MHz 64-bit-3.3v/M2
PCI-X Slot 1 /pci@7c0/pci@0/pci@1/pci@0,2/@1 133MHz 64-bit-3.3v/M2
Network 0 /pci@780/pci@0/pci@1/network@0
Network 1 /pci@780/pci@0/pci@1/network@0,1
Network 2 /pci@7c0/pci@0/pci@2/network@0
Network 3 /pci@7c0/pci@0/pci@2/network@0,1
CDROM Drive /pci@7c0/pci@0/pci@1/pci@0/ide@8
USB0 /pci@7c0/pci@0/pci@1/pci@0/usb@5 Rear device@1 on bottom, device@2 on top
USB1 /pci@7c0/pci@0/pci@1/pci@0/usb@6
/pci@7c0/pci@0/pci@1/pci@0/usb@6/hub@1		 Front hub@1 always connected on front IO device@1 on bottom, device@2 on top

Initial Sun Fire T2000 systems utilizing the factory installed PCI-X card (370-7696) will show internal disk drives under this device path:
/pci@7c0/pci@0/pci@1/pci@0,2/LSILogic,sas@2/sd@<device instance>

Later Sun Fire T2000 systems utilizing the onboard PCI1064E controller will show internal disk drives under this device path:
/pci@780/pci@0/pci@9/scsi@0/sd@<device instance>

Sun Fire T2000 Codename: Ontario
Netra T2000 Codename: Pelton

Notes

  1. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.
  2. The post July 2006 I/O Board 501-7502 has onboard Serial Attached SCSI (SAS).
  3. PEX8532-BB was added to 501-7502-01 in April 2007. (Deviation WO_35285)

Sun Fire T2000 Notes

  1. The minimum operating system is Solaris 10 1/06.

Netra T2000 Notes

  1. The minimum operating system is Solaris 10 6/06.

References

  1. Sun Fire T2000 Server Documentation.
  2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.
  3. Netra T2000 Server Documentation.

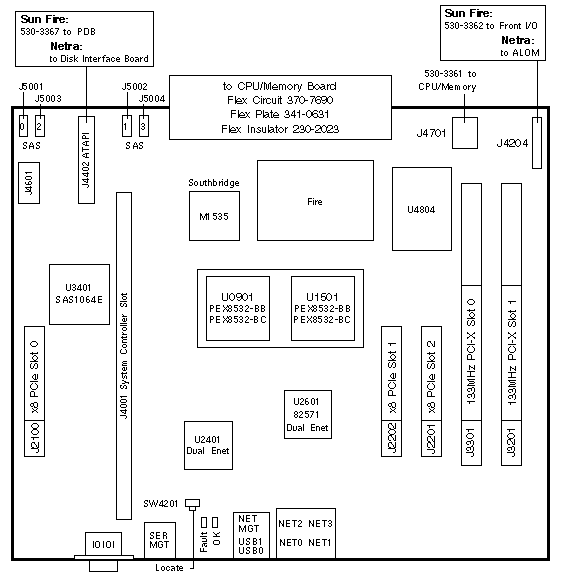

Sun Fire T2000 / Netra T2000

I/O Board

501-7502-02 541-1437-02
I/O Board 0MB Assembly w/o CPU
CPU/Memory + I/O
541-2409 541-2405 541-2408 541-2407 541-2436
0MB FRU
CPU/Memory + I/O
4-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
6-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.0GHz
not supported in
Netra T2000		 0MB FRU
CPU/Memory + I/O
8-Core 1.2GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.4GHz
not supported in
Netra T2000

Sun Fire T2000 PCI Slot Map (not applicable to Netra T2000)

PHYSICAL DEVICE PATH NOTES
PCI-E Slot 0 /pci@780/pci@0/pci@8 x8/M2
PCI-E Slot 1 /pci@7c0/pci@0/pci@8 x8/M2
PCI-E Slot 2 /pci@7c0/pci@0/pci@9 x8/M2
PCI-X Slot 0 /pci@7c0/pci@0/pci@1/pci@0,2/@2 133MHz 64-bit-3.3v/M2
PCI-X Slot 1 /pci@7c0/pci@0/pci@1/pci@0,2/@1 133MHz 64-bit-3.3v/M2
Network 0 /pci@780/pci@0/pci@1/network@0
Network 1 /pci@780/pci@0/pci@1/network@0,1
Network 2 /pci@7c0/pci@0/pci@2/network@0
Network 3 /pci@7c0/pci@0/pci@2/network@0,1
CDROM Drive /pci@7c0/pci@0/pci@1/pci@0/ide@8
USB0 /pci@7c0/pci@0/pci@1/pci@0/usb@5 Rear device@1 on bottom, device@2 on top
USB1 /pci@7c0/pci@0/pci@1/pci@0/usb@6
/pci@7c0/pci@0/pci@1/pci@0/usb@6/hub@1		 Front hub@1 always connected on front IO device@1 on bottom, device@2 on top

Initial Sun Fire T2000 systems utilizing the factory installed PCI-X card (370-7696) will show internal disk drives under this device path:
/pci@7c0/pci@0/pci@1/pci@0,2/LSILogic,sas@2/sd@<device instance>

Later Sun Fire T2000 systems utilizing the onboard PCI1064E controller will show internal disk drives under this device path:
/pci@780/pci@0/pci@9/scsi@0/sd@<device instance>

Sun Fire T2000 Codename: Ontario
Netra T2000 Codename: Pelton

Notes

  1. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.
  2. The post July 2006 I/O Board 501-7502 has onboard Serial Attached SCSI (SAS).
  3. Deviation WO_35431 in March 2007 added PEX8532-BB to 501-7502-02,
    and authorized the use of 4661 boards with the then-unreleased part numbers shown above
    (501-7502-02, 541-1437-02, 541-2405, 541-2407, 541-2408, 541-2409, 541-2436).
  4. PEX8532-BC was added to 501-7502-02 in June 2007. (WO_36831)
  5. The 501-7502-02, 541-1437-02, and FRUs were released in June 2007. (WO_36831)

Sun Fire T2000 Notes

  1. The minimum operating system is Solaris 10 1/06.

Netra T2000 Notes

  1. The minimum operating system is Solaris 10 6/06.

References

  1. Sun Fire T2000 Server Documentation.
  2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.
  3. Netra T2000 Server Documentation.

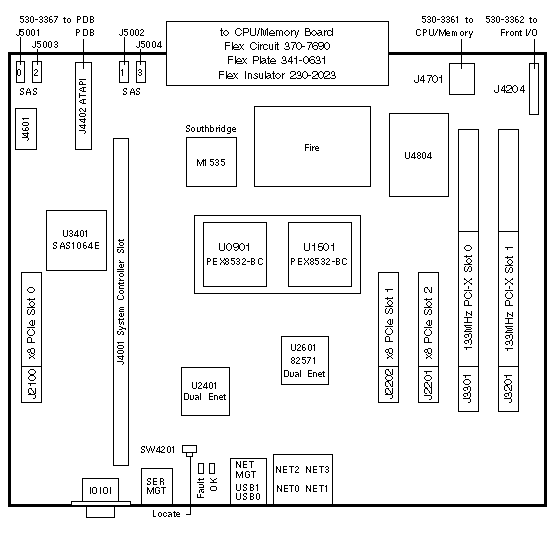

SPARC Enterprise T2000

I/O Board

501-7823 541-2448
I/O Board 0MB Assembly w/o CPU
CPU/Memory + I/O
541-2226 541-2142 541-2192 541-2449
0MB FRU
CPU/Memory + I/O
4-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.0GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.2GHz		 0MB FRU
CPU/Memory + I/O
8-Core 1.4GHz

SPARC Enterprise T2000 PCI Slot Map

PHYSICAL DEVICE PATH NOTES
PCI-E Slot 0 /pci@780/pci@0/pci@8 x8/M2
PCI-E Slot 1 /pci@7c0/pci@0/pci@8 x8/M2
PCI-E Slot 2 /pci@7c0/pci@0/pci@9 x8/M2
PCI-X Slot 0 /pci@7c0/pci@0/pci@1/pci@0,2/@2 133MHz 64-bit-3.3v/M2
PCI-X Slot 1 /pci@7c0/pci@0/pci@1/pci@0,2/@1 133MHz 64-bit-3.3v/M2
Network 0 /pci@780/pci@0/pci@1/network@0
Network 1 /pci@780/pci@0/pci@1/network@0,1
Network 2 /pci@7c0/pci@0/pci@2/network@0
Network 3 /pci@7c0/pci@0/pci@2/network@0,1
CDROM Drive /pci@7c0/pci@0/pci@1/pci@0/ide@8
USB0 /pci@7c0/pci@0/pci@1/pci@0/usb@5 Rear device@1 on bottom, device@2 on top
USB1 /pci@7c0/pci@0/pci@1/pci@0/usb@6
/pci@7c0/pci@0/pci@1/pci@0/usb@6/hub@1		 Front hub@1 always connected on front IO device@1 on bottom, device@2 on top

Initial Sun Fire T2000 systems utilizing the factory installed PCI-X card (370-7696) will show internal disk drives under this device path:
/pci@7c0/pci@0/pci@1/pci@0,2/LSILogic,sas@2/sd@<device instance>

Later Sun Fire T2000 systems utilizing the onboard PCI1064E controller will show internal disk drives under this device path:
/pci@780/pci@0/pci@9/scsi@0/sd@<device instance>

SPARC Enterprise T2000 Codename: Ontario APL

Notes

  1. The Sun Fire T2000 was renamed SPARC Enterprise T2000 in April 2007.
  2. The minimum operating system is Solaris 10 11/06.
  3. Do Not remove the CPU/Memory to I/O Flex Circuit. This is a repair depot procedure.

References

  1. Sun SPARC Enterprise T2000 Server Documentation.
