Serial Attached SCSI HBA

370-7696
LSI Logic SAS3041XL-S PCI/PCI-X   3.3V   32/64Bit 33/66/100/133MHz

Sun Fire T2000 Notes

1. SAS HBA 370-7696 is only used in the pre July 2006 Sun Fire T2000.
   (The post July 2006 T2000 has onboard SAS.)
2. The SAS HBA connects to the SAS Backplane and controls the internal disk drives.
3. The SAS HBA is factory installed in Slot PCI-X 0 and includes a Low Profile Bracket.
4. To replace SAS cable set 530-3446, order Cable Kit 530-3399.
5. SAS cables 530-3442/3443/3444/3445 are shrink wrapped together.

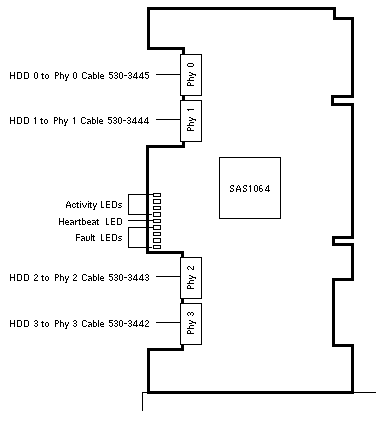

6. SAS cables are labeled HDD on the Backplane end and PHY on the HBA end.

References

1. Sun Fire T2000 Server Documentation.
2. LSI SAS PCI/PCI-X Host Adapters User's Guide, LSI Logic DB15-000333.
3. LSI SAS1064 Controller Technical Manual, LSI Logic DB14-000274.

Netra 210 Notes

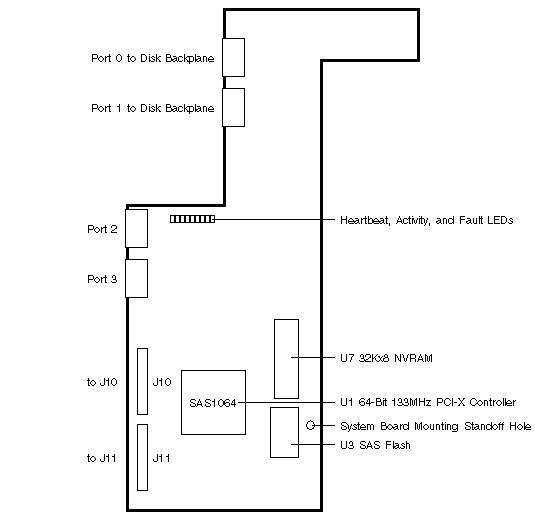

1. The HBA plugs into the Netra 210 System Board at J10 and J11.
2. The HBA connects to the Disk Backplane with one Red and one Yellow SAS Cable.
3. One Red and one Yellow SAS Cable are included in Cable Set 371-0119.
4. There is no part number for the plastic System Board mounting standoff.
5. FRU F370-7677 includes the SAS HBA and the SAS Cable Set.
6. SAS HBA 371-2301 changed to 371-7692-06 in February 2007. (WO_35053)
7. Netra 210 ALOM 1.5.4 and OBP 4.22.19 do not recognize FRUID 371-2301.

References

1. Sun Netra 210 Server Documentation.
2. LSI SAS PCI/PCI-X Host Adapters User's Guide, LSI Logic DB15-000333.
3. LSI SAS1064 Controller Technical Manual, LSI Logic DB14-000274.

Notes

1. The SAS HBA is factory installed in Slot PCI-X 4.

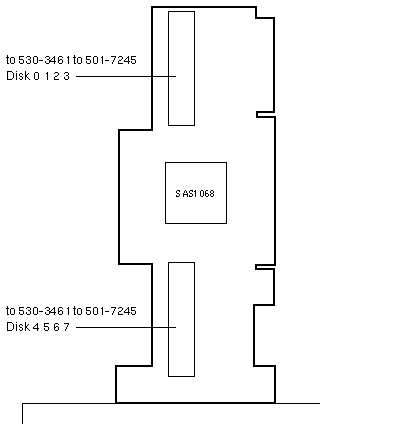

2. The HBA connects to the Disk Cable Board 501-7245 and to the SAS Backplane.
3. To replace SAS Cable 530-3461, order Cable Kit 560-2849.
4. The RAID activate-volume function requires FCode 1.0.39, which can be found in patch 123485-01.

References

1. Sun Fire V445 Server Documentation.
2. Sun Fire V445 Server Supplemental Product Notes, 819-7846.
