Dual 10Gigabit/Sec (4x) InfiniBand
Host Channel Adapter
Option 9270
| 370-6943 |
371-1633 |

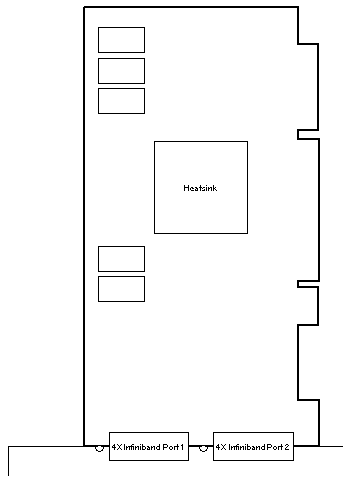

Topspin 4X InfiniBand PCI-X
3.3V 64Bit 66/100/133MHz |
Topspin 4X InfiniBand PCI-X
3.3V 64Bit 66/100/133MHz |
Additional Information & Views
Notes
- On Sun Fire V40z, 370-6943 is only supported in slots 2 and 3
with BIOS <=2.18.11.
- Option 9270 does not include InfiniBand device drivers, documentation,
or cables.
- Connectors with 9-ground pins, 16-signal pins, and latching hardware
are used.
- PCI Identifiers and Vital Product Data are not documented.
References
 Sun Fire V20z and Sun Fire V40z Servers Documentation
Dual 10Gigabit/Sec (4x) InfiniBand
Host Channel Adapter
Options 1233 / 1235 / 1333A-4 / 2333A-4
| 375-3259 |
375-3260 |
375-3418 |

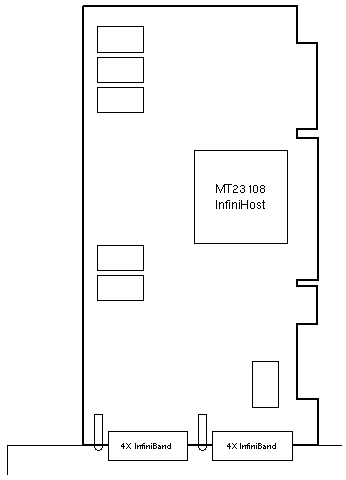

Mellanox MHXL-CF256-T
3.3V 32/64Bit 66/100/133MHz
Standard Bracket
Option 1233
|
Mellanox MHXL-CF256-T
3.3V 32/64Bit 66/100/133MHz
Low-Profile Bracket
Option 1235
|
Mellanox MHXL-CF256-T
3.3V 32/64Bit 66/100/133MHz
Low-Profile Bracket 1333A-4
Standard Bracket 2333A-4
|
Additional Information & Views
Notes
- The minimum Solaris operating system is Solaris 10 3/05.
- Board Options 1233 and 1235 do not include InfiniBand cables.
- Cable Option 9280 includes 2 Meter 4x-12x InfiniBand Cable 530-3387.
- Cable Option 9281 includes 5 Meter 4x-12x InfiniBand Cable 530-3386.
- Install the InfiniBand card in Sun Fire V40z 66MHz or 100MHz slots.
- The InfiniBand card is not mechanically compatible with
Sun Fire E6900 Slot 3.
- PCI Identifiers are Vendor ID 0x15b3, Device ID 0x5a44, and Subsystem ID 0x5a44.
- Vital Product Data VPD=PN is 375-3259 or 375-3418.
References
- Sun Dual Port 4x IB Host Channel Adapter PCI-X Documentation
|
