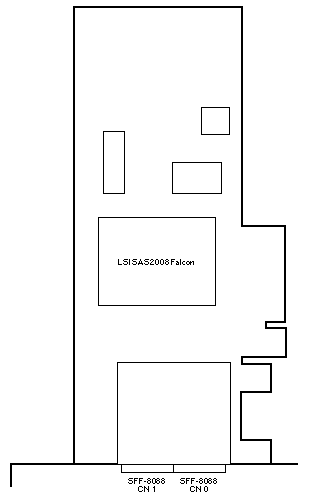

8-Port 6Gbps SAS-2 HBA Module

Codename: Erie-EXT (LSI)

Option SGX-SAS6-EXT-Z
Option 7105387

375-3641	7047853
LSI H3-25102-xx x8 PCI Express	LSI H3-25102-xx x8 PCI Expres

Additional Information & Views

Notes

1. The minimum Solaris OS is Solaris 10 10/09 per 820-7890-10 of July 2010.
2. The recommended minimum Solaris OS is Solaris 10 01/13 per E22493-05 of September 2013.
3. For the latest recommended OS support levels, see the Installation Guide.
4. The 8-Port SAS HBA was released in September 2010. (WO_42926)
5. PCI Identifiers are Vendor ID 0x1000, Device ID 0x0072, and Subsystem ID 0x30b0.
6. Vital Product Data VPD=PN is 375-3641 for both part numbers.

References

1. Sun Storage 6 Gb SAS PCIe HBA, External Documentation
2. Engineering Specification, 950-6032-01.
