PCI Express - Dual Ultra-320 SCSI

Codename: Rhea

Option SG-XPCIE2SCSIU320Z
Option 7105384

375-3357	7050790

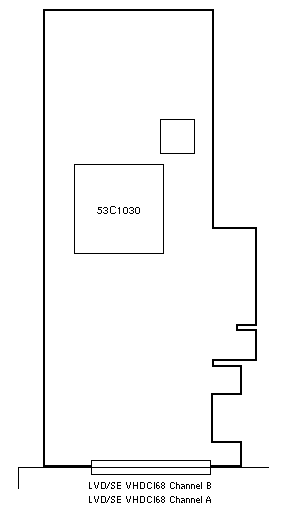

LSI22320SLE x4 PCI Express Low Profile Bracket	LSI22320SLE x4 PCI Express Low Profile Bracket

Additional Information & Views

Notes

1. The minimum Solaris SPARC operating system is Solaris 10 3/05 HW2.
2. The minimum Solaris x64/x86 operating system is Solaris 10 3/05 HW1 x64.
3. Linux and Windows device drivers are not included.
4. Linux and Windows device drivers are available at www.lsilogic.com/support/sun.
5. ATO Options include Low Profile Bracket 240-4909 or Standard Bracket 240-4904.
6. X Options include Low Profile Bracket 240-4909 and Standard Bracket 240-4904.
7. The 375-3357-02 is not compatible with Fujitsu OPL systems. Use 375-3357-03.
8. PCI Identifiers are Vendor ID 0x1000, Subsystem ID 0x10b0, and Device ID 0x0030.
9. Vital Product Data VPD=PN is 375-3357 for both part numbers.

References

1. Sun StorageTek Ultra320 SCSI PCIe HBA, Dual Port Documentation
