4-Slot SAS Disk Backplane

501-7022	501-7503	501-7755
270-7022-06	270-7022-06 Sun Fire T2000	270-7022-06 Enterprise T2000

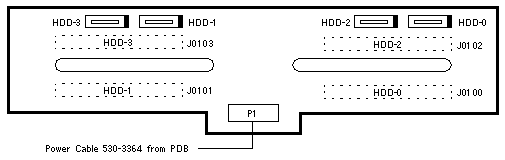

Solder Side View

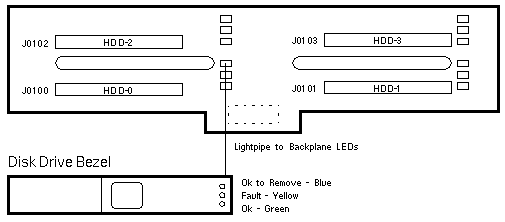

Component Side View

Sun Fire T2000 Codename: Ontario SPARC Enterprise T2000 Codename: Ontario APL

501-7022 Notes

1. To replace SAS cable set 530-3446, order Cable Kit 530-3399.
2. SAS cables 530-3442/3443/3444/3445 are shrink wrapped together.
3. SAS cables are labeled HDD on the Backplane end and PHY on the HBA end.

501-7503 Notes

1. To replace SAS cable set 530-3440, order Cable Kit 530-3686.
2. SAS cables 530-3436/3437/3438/3439 are shrink wrapped together.

References

1. Sun Fire T2000 Server Documentation.
2. Sun Fire T2000 Advanced Lights Out Management (ALOM) Guide, 819-2550.
3. Sun SPARC Enterprise T2000 Server Documentation.
