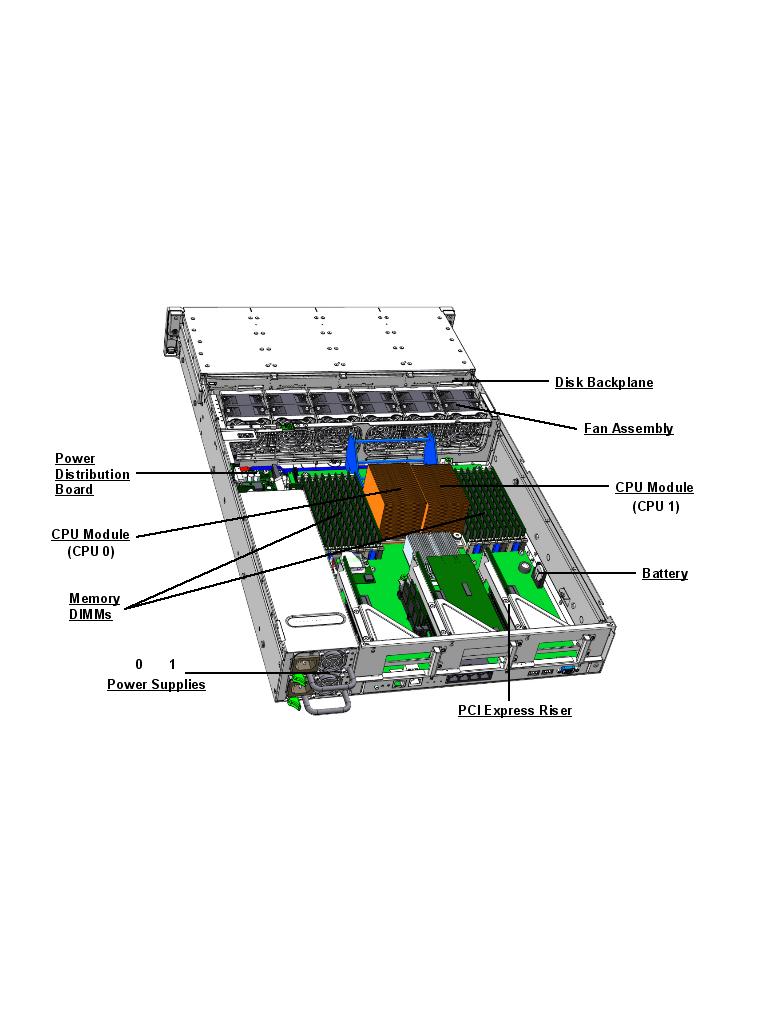

Sun Fire X4270 M2 - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X4375A [S]	371-4985 [F]	3.46GHz Intel 6-Core Xeon X5690, 130W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X4376A [S]	371-4984 [F]	3.06GHz Intel 6-Core Xeon X5675,12MB, 95W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5920A-2U [S]	371-4890 [F]	3.33GHz Intel 6-Core Xeon X5680, 12MB, 130W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5921A-2U [S]	371-4889 [F]	2.93GHz Intel 6-Core Xeon X5670, 12MB, 95W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5924A-2U [S]	371-4885 [F]	2.4GHz Intel Quad-Core Xeon E5620, 12MB, 80W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X2130A-1M-N Buy	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
X2130A-10M-N [S]	530-4454 [C]	10Gbps SFP+ TwinX Cable, 10m	n/a
n/a	530-3888 [F]	Hard Disk Drive Power Cable	n/a
n/a	560-2952 [F]	Cable Kit	n/a
	530-4245	12-Slot Backplane Power Cable	n/a
	530-4458	24-Slot Backplane Power Cable	n/a
	530-4459	12/24-Slot Backplane Signal Cable	n/a
	530-4471	Fan Signal Cable	n/a
	530-4488	Fan Power Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X4237A-N [S]	375-3606 [C]	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express	n/a
X4242A [S]	7092767 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	375-3696 [C]
n/a	375-3696 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4303 [F]	24-Slot 2.5" Disk Backplane Assembly	n/a
	341-6231	Mounting Bracket	n/a
	511-1511	24-Slot 2.5" Disk Backplane	n/a
n/a	541-4363 [F]	12-Slot 3.5" Disk Backplane Assembly	n/a
	341-5083	Mounting Bracket	n/a
	511-1593	12-Slot 3.5" Disk Backplane	n/a
n/a	597-0797	2.5" Rear Disk Module (Option 5926A)	n/a
	350-1504	HDD/PCI Rear Panel	n/a
	530-3888 [F]	Hard Disk Drive Power Cable	n/a
	541-4235	Rear Disk Module Assembly	n/a
	501-7843 [F]	2-Slot 2.5" Disk Backplane	n/a
	541-4186	Rear Disk Bracket Assembly	n/a
	530-4406 [C]	Dual Disk Drive Data Cable	n/a
n/a	7049238 [F]	12-Slot 3.5" Disk Backplane Assembly	541-4363 [F]
	341-5083	Mounting Bracket	n/a
	7049234	12-Slot 3.5" Disk Backplane	n/a
n/a	7049260 [F]	24-Slot 2.5" Disk Backplane Assembly	541-4303 [F]
	341-6231	Mounting Bracket	n/a
	7049258	24-Slot 2.5" Disk Backplane	n/a
n/a	7057208	2.5" Rear Disk Module	597-0797
	350-1504	HDD/PCI Rear Panel	n/a
	530-3888 [F]	Hard Disk Drive Power Cable	n/a
	7057207	Rear Disk Module Assembly	541-4235
	541-4186	Rear Disk Bracket Assembly	n/a
	7049231 [F]	2-Slot 2.5" Disk Backplane	501-7843 [F]
	530-4406 [C]	Dual Disk Drive Data Cable	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7100063 [S]	7040582 [C]	2TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7025852	Hitachi HUS723020ALS640 [H7220AS60SUN2.0T] (2TB - 7200 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
7101423 [S]	7017183 [C]	100GB Solid State SATA Drive Assembly	n/a
	7017177	Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7101469 [S]	7017184 [C]	300GB Solid State SATA Drive Assembly	n/a
	7017181	Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS1CR-1T7K [S]	542-0392 [C]	1TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0475	Seagate ST31000424SS [ST31001SSSUN1.0T] (1TB - 7200 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-SS1CR300G15K-N [S]	541-3864 [C]	300GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0423	Seagate ST3300656SS [ST330056SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	390-0461	Seagate ST3300657SS [ST330057SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-SS2CF-600G10K2 [S]	542-0287 [C] Buy	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF300G10K-N [S]	540-7869 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-ST1CR32G2SSD-N [S]	541-3890 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-ST2CF32G2SSD-N [S]	540-7841 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-SS1CR-300G15K [S]	542-0427 [C]	300GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0423	Seagate ST3300656SS [ST330056SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	390-0461	Seagate ST3300657SS [ST330057SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	390-0481	Hitachi HUS156030VLS600 [HUS1530SCSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRB-SS2CF-300G10K2 [S]	542-0388 [C] Buy	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-SS2CF146G10K-N [S]	540-7868 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-ST2CF-500G7K [S]	7042768 1 [C]	500GB - 10000 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7042764	Western Digital WD5000BLHX [WD500BLHXSUN500G] (500GB - 10000 RPM - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	542-0247 [C]	2TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0476	Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB - 7200 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
n/a	542-0371 [C]	500GB - 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	390-0492	Seagate ST9500620NS [ST95001NSSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	542-0428 [C]	600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0463	Seagate ST3600057SS [ST360057SSUN600G] (600GB - 15000 RPM - SAS Disk)	n/a
	390-0483	Hitachi HUS156060VLS600 [HUS1560SCSUN600G] (600GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a

1 The Western Digital 500GB 10000 RPM drive replaced the Seagate 500GB 7200 RPM drive due to shortages caused by flooding in Thailand in 2011. The bezel is labeled SATA 500GB 7200 RPM 3Gbps.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	375-3682 [C]
X4446A-Z-N [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X7280A-2-N [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4124 [F]	Fan Board Assembly	n/a
	330-5243	Fan Board Cover	n/a
	511-1434	Fan Board	n/a
n/a	541-4222 [C]	Fan Assembly	n/a
	371-4613	60×28mm 10400/9500 RPM Dual Fan	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	341-4139	PCI Filler Panel	n/a
n/a	541-2884 [C]	x8/x8 PCI Express Riser Assembly	n/a
	501-7964	x8/x8 PCI Express Riser	n/a
	541-2531	Bracket	n/a
n/a	541-3356 [C]	x8/x8 Switched PCI Express Riser Assembly	n/a
	511-1139	x8/x8 Switched PCI Express Riser	n/a
	541-2531	Bracket	n/a
n/a	541-4306 [F]	Connector Board Assembly	n/a
	511-1517	Connector Board	n/a
	341-6222	Mounting Bracket	n/a
	530-3510	Interlock Switch Cable	n/a
n/a	7049269 [C]	x8/x8 PCI Express Riser Assembly	541-2884 [C]
	541-2531	Bracket	n/a
	7049268	x8/x8 PCI Express Riser	501-7964
n/a	7049272 [C]	x8/x8 Switched PCI Express Riser Assembly	541-3356 [C]
	541-2531	Bracket	n/a
	7049271	x8/x8 Switched PCI Express Riser	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X4911A	371-4966 [C]	8GB Registered DDR3L-1333/DDR3L-1600 DIMM, 1.35V	n/a
X4850A [S]	371-4898 [C]	4GB Registered DDR3-1333 DIMM, 1.5V	n/a
X4851A [S]	371-4899 [C]	8GB Registered DDR3-1066 DIMM, 1.5V	n/a
X4910A [S]	371-4965 [C]	4GB Registered DDR3-1333 DIMM, 1.35V	n/a
XRA-S-4G2-USB2 [S]	371-4743 [C]	4GB USB 2.0 Flash Drive	n/a
XRA-ST3C-24G2FMD [N]	371-4531 [C] [N]	24GB SATA-based Sun Flash Module	n/a

NOTE: Support for XRA-ST3C-24G2FMD was cancelled on 07/28/10.

Power
Option #	Manufacturing Part #	Description	Previous Part #
X5933A [S]	300-2304 [C]	Type A249A 1100/1200 Watt AC Input Power Supply	300-2235 [C]
n/a	300-2235 [C]	Type A249 1100/1200 Watt AC Input Power Supply	n/a
n/a	541-4223 [F]	Power Distribution Assembly	n/a
	341-3166	Bus Bar Left	n/a
	341-3167	Bus Bar Right	n/a
	511-1437	Horizontal Power Distribution Board	n/a
	511-1513	Vertical Power Distribution Board	n/a
	371-2484	PDB Signal Cable	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
7100715 [S]	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
X5888A-N [S]	350-1287 [C]	1U/2U Cable Management Arm	n/a
X5889A-N [S]	350-1265 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
X5906A [S]	350-1502 [C]	1U/2U Bolt-In Slide Rail Kit	n/a
n/a	350-1718 [C]	1U/2U Bolt-On Slide Rail Rackmount Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGX-SAS6-INT-Z [S]	7047852 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3640 [C]
SGX-SAS6-R-INT-Z [S]	7047503 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	375-3701 [C]  + 375-3644 [C]
	7050794 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	371-4982 [C]  + 371-4746 [C]
SGXPCIE2SCSIU320-N [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
XTA-FAS-S3IE96GB [S]	541-3731	96GB PCI Express Flash Accelerator F20 SAS HBA	n/a
	371-4650 [C]	Energy Storage Module (ESM)	n/a
	511-1500 [C]	PCI Express Flash Board	n/a
	7061269 [C]	24GB Solid State Flash Memory Module, FW D21Y	371-4415 [C]
n/a	371-4415 [C]	24GB Solid State Flash Memory Module	n/a
n/a	371-4746 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU07	n/a
n/a	371-4982 [C]	6Gbps SAS-2 RAID PCI Battery Module, BBU08	371-4746 [C]
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3640 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	375-3644 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B2 ASIC	n/a
n/a	375-3701 [C]	8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC	375-3644 [C]

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-4081 [F]	System Board Assembly/FRU	n/a
	511-1213	System Board	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	541-2543	System Board Tray	n/a
n/a	7049265 [F]	System Board Assembly/FRU	541-4081 [F]
	7049264	System Board	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	341-6222	Mounting Bracket
NS	371-2484	PDB Signal Cable
NS	530-3510	Interlock Switch Cable
NS	530-4228 [C]	SFF8087 to SFF8087 Mini-SAS Cable, 690mm
NS	530-4406 [C]	Dual Disk Drive Data Cable
NS	599-3651	X4270M2-H1-AA Base Assembly
NS	330-4687	Clear Plastic Air Duct
NS	330-5329	Duct Handle
	341-4139	PCI Filler Panel
NS	371-4793	RFID Tag
NS	541-4316	12-Slot Base Chassis Assembly
NS	330-4944	Fan Bay Sidewall Filler Panel
NS	350-1547	Hyde 12 Chassis Assembly
NS	350-1587	Top Cover
	530-4245	12-Slot Backplane Power Cable
	530-4459	12/24-Slot Backplane Signal Cable
	530-4471	Fan Signal Cable
	530-4488	Fan Power Cable
	541-4223 [F]	Power Distribution Assembly
	341-3166	Bus Bar Left
	341-3167	Bus Bar Right
	511-1437	Horizontal Power Distribution Board
	511-1513	Vertical Power Distribution Board
NS	371-2484	PDB Signal Cable
NS	350-1261	Rear PCI Panel
NS	530-3892 [C]	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS	530-3927 [C]	PDB to System Board Ribbon Cable
NS	541-2075 [F]	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	541-4304 [F]	Right Indicator Panel
NS	530-4244	Indicator Cable
NS	530-4463	LED/USB Flex Cable
NS	541-4305 [F]	SAS Expander Assembly
NS	330-5300	Mounting Bracket
NS	511-1512	SAS Expander
NS	541-4371 [F]	Left Indicator Panel
NS	511-1594	LED Board
NS	530-4478	Left Indicator Cable
NS	599-3703	X4270M2-H1-AB Base Assembly
NS	541-4307	24-Slot Base Chassis Assembly
NS	350-1539	Hyde 24 Chassis Assembly
NS	350-1625	HDD Bay Top Cover
NS	7055798 [F]	SAS Expander Assembly
NS	541-4305 [F]	SAS Expander Assembly
NS	330-5300	Mounting Bracket
NS	7055792	SAS Expander
