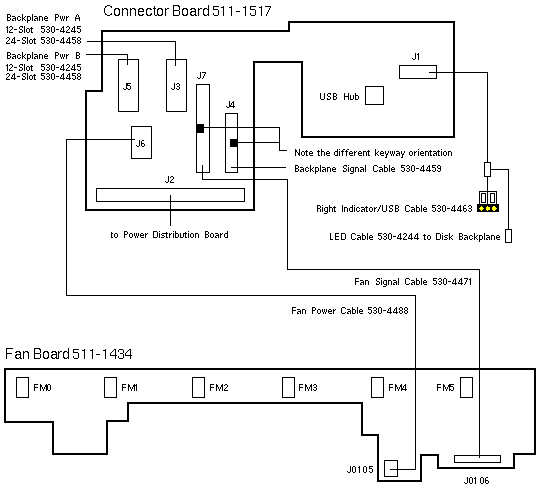

Front Connector Assembly


511-1434 541-4124 511-1517 541-4306
Fan Board Fan Board FRU Connector Board Connector Board FRU
with Interlock Switch

Notes

  1. Connector board connectors J5 and J3 are designated Power A and Power B.
  2. 12-Slot Backplane connectors J17 and J20 are designated Power A and Power B.
  3. 24-Slot Backplane connectors J30 and J31 are designated Power A and Power B.

References

  1. Sun Fire X4270 M2 Server Documentation.
