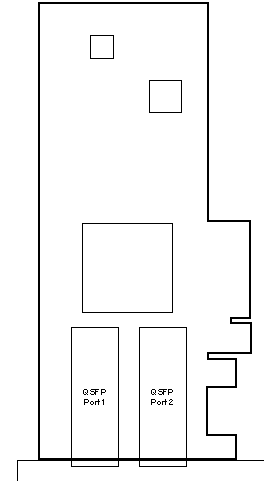

Dual 40Gigabit/Sec (4x) QDR InfiniBand
Host Channel Adapter M2

Codename: qFalcon CX2

Option X4242A

375-3696	7092767
Mellanox ConnectX-2 Low Profile x8 PCI Express	Mellanox ConnectX-2 MHQH29B-XSR x8 PCI Express

Notes

1. The minimum M3000-thru-M9000 Solaris OS is Solaris 10 10/09.
2. The minimum X4170 M2 and X4270 M2 Solaris OS is Solaris 10 9/10.
3. Solaris requires the SUNWhermon package.
4. Linux requires MLNX-OFED software version 1.5.1 or greater.
5. The 375-3696 was released in August 2010. (WO_43493)
6. Option 4242A does not include InfiniBand cables or documentation.
7. PCI Identifiers are not documented in specification 950-6077.
8. Vital Product Data VPD=PN is 375-3696.
9. The 7092767 was released in May 2014. (E0020423)
10. PCI Identifiers and Vital Product Data for are not documented in the Product
    Requirements Document for 7092767.

References

1. Sun InfiniBand Dual Port 4x QDR PCIe Low Profile Host Channel Adapter M2 Documentation.
