Seagate ST9146803SS (146.8GB)

2 1/2" 10000 RPM 6Gb/Sec Serial Attached SCSI

Option SEMX3B11Z
Options SEPX3C11Z / SEVX3C11Z
Options SESX3C11Z / SELX3C12Z
Option XRA-SS2CF-146G10K2
Option XRB-SS2CD-146G10K
Option XRB-SS2CF-146G10K
Option XRB-SS2ND-146G10K

390-0448
15mm Height
Savvio 10K3
950-5855
540-7407 540-7777 540-7864 540-7866
Nemo Bracket FRU
15mm Bracket 541-3004
SEMX3B11Z		 Nemo Bracket FRU
15mm Bracket 541-3004
SEPX3C11Z		 Nemo Bracket FRU
15mm Bracket 541-3004
XRB-SS2CD-146G10K
SEVX3C11Z		 NEBS Nemo Bracket FRU
15mm Bracket 541-3004
XRB-SS2ND-146G10K
540-7868 541-4283 542-0217 7021888
Marlin Bracket FRU
Bracket 541-2123
XRB-SS2CF-146G10K
SESX3C11Z		 Nemo Bracket FRU
15mm Bracket 541-0239
15mm Bracket 541-3004
SELX3C12Z		 Marlin Bracket FRU
Bracket 541-2123
XRA-SS2CF-146G10K2		 Nemo Bracket FRU
15mm Bracket 541-3004
SEMX3B11Z

Notes

  1. Drive 390-0448 was released in February 2009. (WO_40722)
  2. Assemblies 540-7864 and 540-7868 with drive 390-0448 were released in February 2009. (WO_40722)
  3. Assembly 540-7866 with drive 390-0448 was released in April 2009. (WO_41106)
  4. Assembly 540-7864 was added to SEVX3C11Z in April 2009. (WO_41161)
  5. Assembly 540-7868 replaced 540-7355 in SESX3C11Z in April 2009. (WO_40981, WO_41247)
  6. Drive 390-0448 was added to 540-7777 in April 2009. (WO_41248)
  7. Assembly 542-0217 with 390-0448 was released in August 2009. (WO_41790)
  8. Assembly 541-4283 with 390-0448 was released in September 2009. (WO_41939)
  9. SELX3C12Z replaced SEPX3C11Z for the M4000 and M5000 in October 2009.
  10. Assembly 7021888 with 390-0448 was released in September 2011. (E0005261)

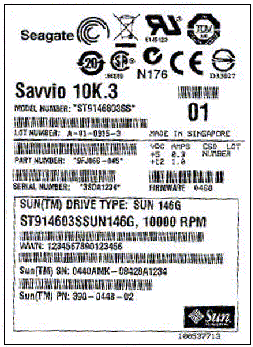

  11. The Seagate model number on the serial number label is ST9146803SS.
  12. The Sun model number on the serial number label is ST914603SSUN146G.
  13. The Product Identification in SCSI Inquiry bytes 16-31 is ST914603SSUN146G.
