Options X4095A / X4096A / X4850A / X4851A / X4910A / X4911A

371-4898	371-4899

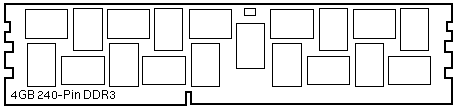

DDR3-1333/PC3-10600 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 4GB Registered DIMM 4GB Option X4850A	DDR3-1066/PC3-8500 2-Rank/2Gbit SDRAM 1.5V VDD/VDDQ 8GB Registered DIMM 8GB Option X4851A

371-4073	371-4999	371-4965	371-4966
DDR3L-1333/PC3L-10600 1-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 4GB Registered DIMM 4GB Option X4095A	DDR3L-1333/PC3L-10600 DDR3L-1600/PC3L-12800 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 8GB Option X4096A	DDR3L-1333/PC3L-10600 1-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 4GB Registered DIMM 4GB Option X4910A	DDR3L-1333/PC3L-10600 DDR3L-1600/PC3L-12800 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 8GB Option X4911A

Notes (see ODA Notes below)

1. Do not install DIMMs in slots next to an empty CPU socket.
2. The minimum configuration is one DIMM per CPU.
3. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
4. Install DIMMs D8/D5/D2 then DIMMs D7/D4/D1 then DIMMs D6/D3/D0.
5. Use of the same DIMM size and speed is recommended for maximum performance.
6. DIMMs 371-4965 and 371-4966 are not qualified for use in the Netra X4270.
7. DDR3L-1600 parts were used as 371-4966 under deviation. (D0002018)

Oracle Database Appliance / Sun Fire X4370 M2 Notes

1. The only supported configuration is 12 DIMMs per System Board.
2. The only supported memory is 1333MHz or 1600MHz 8GB DIMM 371-4966.
3. DIMM speed is limited to 1333MHz by the CPU QuickPath Interconnect (QPI) speed.

References

1. Sun Blade X6270 M2 Server Module Documentation.
2. Sun Netra X4270 Server Documentation.
3. Sun Netra X6270 M2 Server Module Documentation.
4. Sun Fire X4170 M2 Server Documentation.
5. Sun Fire X4270 M2 Server Documentation.
