12-Slot 3.5" Disk Backplane
| 511-1593 |
541-4363 |
7049234 |
7049238 |
|
FAB 271-1593 |
Backplane Assembly
Backplane 511-1593 |
FAB 271-1593 |
Backplane Assembly
Backplane 7049234 |

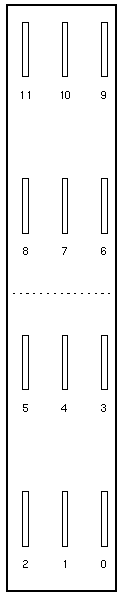

Front View
 |
|

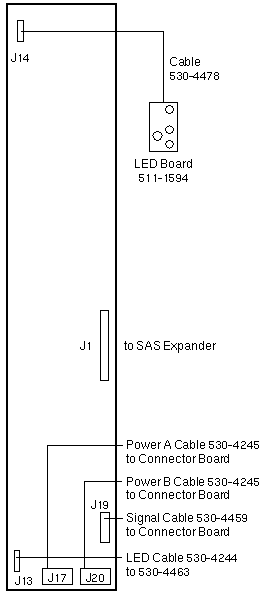

Rear View
 |
Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus)
Sun ZFS Storage 7120 Codename: Amber Road (Iwashi+)
Big Data Appliance Codename: BDA |
Notes
- Connector board connectors J5 and J3 are designated Power A and Power B.
- 12-Slot Backplane connectors J17 and J20 are designated Power A and Power B.
References
 Sun Fire X4270 M2 Server Documentation.
|
