Western Digital WD5000BLHX (500.0GB)
2 1/2" 10000 RPM Serial ATA 3.0Gb/s
Option XRB-ST2CF-500G7K
| 7042764 |
7042768 |
542-0410 |
Aztec
WD Velociraptor |
Marlin Bracket FRU
15mm Bracket 541-2123
Pkg FRU 7042769
XRB-ST2CF-500G7K |
KMS FRU for X4170 M2
15mm Bracket 541-2123
7042768 + KMS 2.x |
Notes
- Drive 7042764 was released and added to Assembly 7042768 in January 2012.
(E0008697)
- The Western Digital 500GB 10000 RPM drive replaced the Seagate 500GB 7200 RPM
drive due to shortages caused by flooding in Thailand in 2011. The bezel is labeled SATA
500GB 7200 RPM 3Gbps.

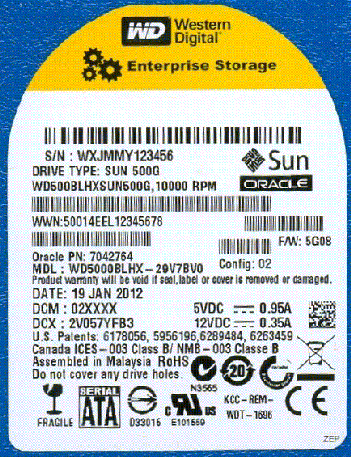

- The Western Digital Model Number on the serial number label is WD5000BLHX.
- The Sun Model Number on the serial number label is WD500BLHXSUN500G.
- The Product in Identify Device data bytes 31-38 is WD500BLHXSUN500G.
|
