Flash Module

Option X4676A
Option XTA4ST3S-24GBFM
Option XRA-ST3C-24G2FMD

371-4531

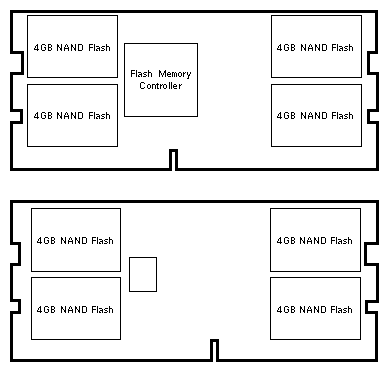

24GB SATA Flash MiniDIMM SD88SA024BB0-MDM1C000 X4676A XRA-ST3C-24G2FMD

371-4091	371-4846	7061954
24GB SATA Flash MiniDIMM SD88SA024SA0-MDM2C000 SD88SA024SB0-MDM1C000 SD88SA024SB0-MDM2C000 XTA4ST3S-24GBFM	24GB SATA Flash MiniDIMM SD88SA024BB0-MDM1C000 SD88SA024BB0-MDM2C000 SD88SA024SB0-MDM1C000 XTA4ST3S-24GBFM Replaced 371-4091	24GB SATA Flash MiniDIMM SD88SA024SB0-MDM1D139 Replaced 371-4846

Additional Information & Views

Storage F5100 Codename: Lightning Flash 1.0 (aka Mongo) Sun Blade X6275 Codename: Vayu Sun Fire X2270 M2 Codename: Wasp+ Sun Fire X4170 M2 Codename: Lynx+ (Thelma) Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)

Notes

1. Raw capacity is 32GB. Usable capacity is 24GB.
2. Firmware MP1F on 371-4091-05 fixes BugID 15579227 [SUNBT6866655] (WO_41961).
3. XTA4ST3S-24GBFM changed from 371-4091 to 371-4846 in March 2010. (WO_42737)
4. FMOD 371-4091 was used in place of 371-4846 in May 2012. (D0001007)
5. No ATO or Xoption was updated when 7061954 was released in January 2013.
6. Support in X2270M2, X4170M2, X4270M2, X4470, and X6270M2 was canceled.

References

1. Sun Blade X6275 Server Module Documentation.
2. Sun Fire X2270 M2 Server Documentation.
3. Sun Storage F5100 Flash Array Documentation.
4. Sun Fire X4170 M2 Server Documentation.
5. Sun Fire X4270 M2 Server Documentation.
